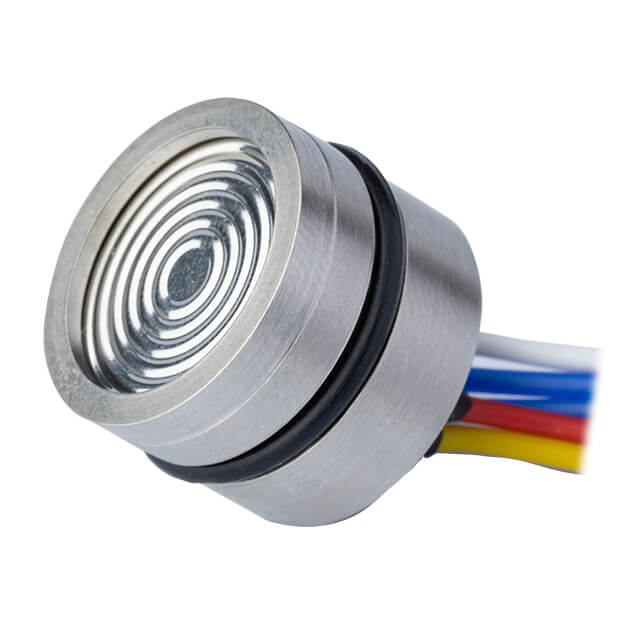

PS05-A100KP-5W
ActiveSame Sky (Formerly CUI Devices)
SENSOR 14.5PSIA .15V
PS05-A100KP-5W
ActiveSame Sky (Formerly CUI Devices)
SENSOR 14.5PSIA .15V
Description
General part information
PS05-A100KP-5W
Pressure Sensor 14.5PSI (100kPa) Absolute 60 mV ~ 150 mV Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PS05-A100KP-5W |
|---|---|
| Features | Temperature Compensated |
| Maximum Pressure | 29.01 PSI |
| Operating Pressure | 14.5 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 150 mV |
| Output Voltage (Min) | 60 mV |
| Package / Case | Module |
| Port Style | No Port |
| Pressure Type | Absolute |
| Termination Style | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
