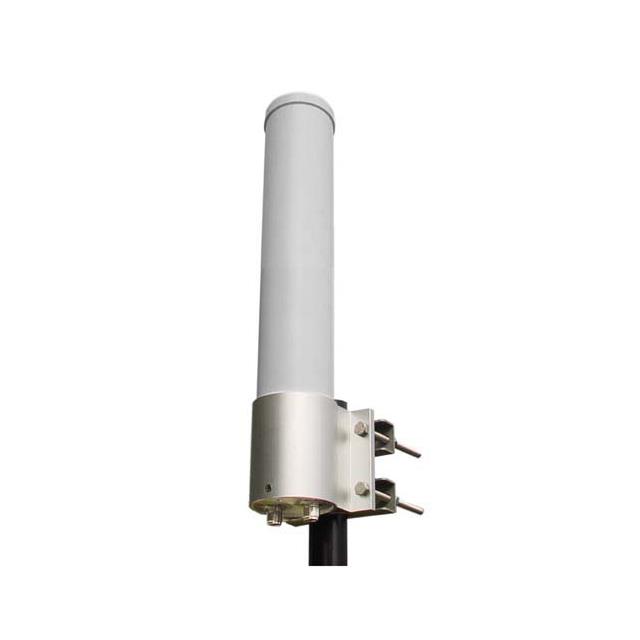

HG5158DP-10U
ActivePasternack
ANTOMNI 5.1-5.8GHZ 10DBI
HG5158DP-10U
ActivePasternack
ANTOMNI 5.1-5.8GHZ 10DBI
Description
General part information
HG5158DP-10U
RF ANTENNA 802.11a/n, Wi-Fi, WiMax, WLAN Whip, Straight N Type Female (2) Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG5158DP-10U |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | 802.11a/n, WiMax, WLAN, Wi-Fi |
| Frequency (Center/Band) | 5.5 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 5.15 GHz |
| Gain | 10 dBi |
| Height (Max) | 19.7 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
