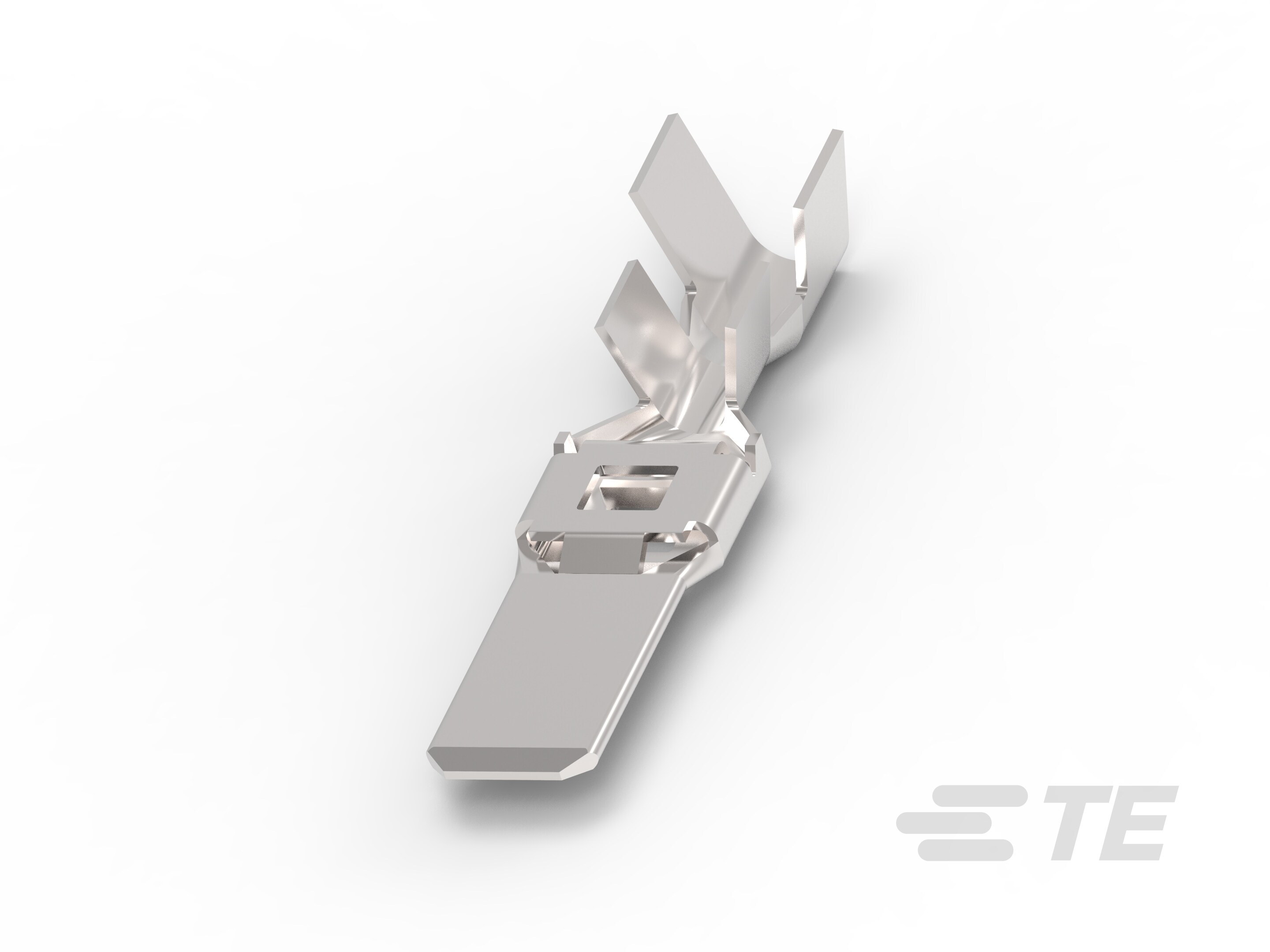

Specification	1544968-2

Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Male
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Tab Length	0.638 in
Tab Thickness	0.039 in
Tab Width	0.315 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	10 AWG
Wire Gauge (AWG) (Min)	9 AWG

NG1 Series

Part	Tab Thickness	Tab Length	Tab Width	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Mounting Type	Gender	Insulation	Contact Finish	Length - Overall	Terminal Type	Termination	Material	Note	Terminal Size	Style	Color	Stacking Direction	Related Product Length	For Use With/Related Products	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Type	Features	Number of Rows	Pitch	Insulation Material	Contact Termination	Fastening Type	Accessory Type
TE Connectivity AMP Connectors 1544228-1	0.032 in	0.433 in	0.315 in	9 AWG	7 AWG	Copper Alloy	Free Hanging (In-Line)	Female	Non-Insulated	Tin	1.433 in	Standard	Crimp
TE Connectivity AMP Connectors 1544551-2							Free Hanging (In-Line)	Female Receptacle				Disconnect Quick Connect		Glass Filled Polybutylene Terephthalate	Contacts Not Included	0.25 in	Housing	Black	Side to Side	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	4
TE Connectivity AMP Connectors 1544978-1							Free Hanging (In-Line)											Black				2	125 °C	-40 °C	Receptacle	Female Socket	Sealed	1	0.472 in	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Lock
TE Connectivity AMP Connectors 1544969-1	0.039 in		0.315 in	10 AWG	8 AWG	Copper Alloy	Free Hanging (In-Line)	Male	Non-Insulated	Tin	1.496 in	Standard	Crimp
TE Connectivity AMP Connectors 1544970-2																																	Wire Seal
TE Connectivity AMP Connectors 1544970-4
TE Connectivity AMP Connectors 1801422-1							Free Hanging (In-Line)											Black				2	85 °C	-40 °C	Receptacle	Female Socket		1		Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder
TE Connectivity AMP Connectors 1544980-1							Free Hanging (In-Line)											Black				2	125 °C	-40 °C	Housing for Male Insert	Tab	Sealed	1	0.472 in	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Locking Ramp
TE Connectivity AMP Connectors 1544978-3							Free Hanging (In-Line)											Gray				2	125 °C	-40 °C	Receptacle	Female Socket	Sealed	1	0.472 in	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder
TE Connectivity AMP Connectors 967610-1																					Micro Quadlok Series												Seal Protector
