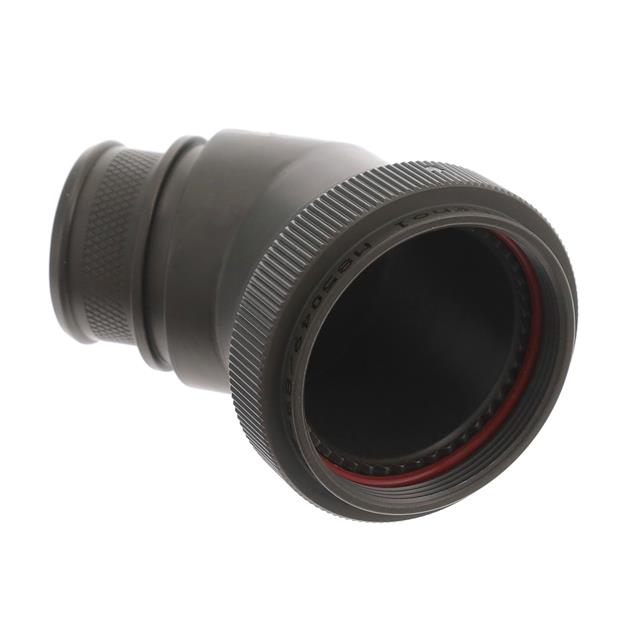

Specification	M85049/89-25W03

Cable Exit Angle	45 °
Cable Opening	1.01 in
Color	Olive Drab
Diameter - Outside	1.891 in
Features	Self Locking
For Use With/Related Products	IV, MIL-DTL-38999 Series III
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	J, 25
Shielding	Unshielded
Type	Banding, Backshell

M85049/89 Series

Part	Cable Opening	Material	Type	Diameter - Outside	Plating	Color	Shell Size - Insert	Cable Exit Angle	Shielding	Features	For Use With/Related Products
McGill Microwave Systems M85049/89-23Z03	0.95 in	Aluminum Alloy	Backshell Banding	1.77 in	Zinc Cobalt	Black	23 H	45 °	Unshielded	Self Locking
McGill Microwave Systems M85049/89-17N03	0.64 in	Aluminum Alloy	Backshell Banding	1.406 in	Electroless Nickel	Silver	17 E	45 °	Unshielded	Self Locking
McGill Microwave Systems M85049/89-21Z02	0.64 in	Aluminum Alloy	Backshell Banding	1.64 in	Zinc Cobalt	Black	21 G	45 °	Unshielded	Self Locking	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/89-19Z02	0.64 in	Aluminum Alloy	Backshell Banding	1.52 in	Zinc Cobalt	Black	19 F	45 °	Unshielded	Self Locking	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/89-13Z02	0.32 in	Aluminum Alloy	Backshell Banding	1.16 in	Zinc Cobalt	Black	13 C	45 °	Unshielded	Self Locking	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/89-13Z02	0.32 in	Aluminum Alloy	Backshell Banding	1.16 in	Zinc Cobalt	Black	13 C	45 °	Unshielded	Self Locking
McGill Microwave Systems M85049/89-25Z03	1.01 in	Aluminum Alloy	Backshell Banding	1.89 in	Zinc Cobalt	Black	25 J	45 °	Unshielded	Self Locking
McGill Microwave Systems M85049/89-17Z02	0.51 in	Aluminum Alloy	Backshell Banding	1.41 in	Zinc Cobalt	Black	17 E	45 °	Unshielded	Self Locking	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/89-15Z03	0.57 in	Aluminum Alloy	Backshell Banding	1.28 in	Zinc Cobalt	Black	15 D	45 °	Unshielded	Self Locking
McGill Microwave Systems M85049/89-23Z02	0.7 in	Aluminum Alloy	Backshell Banding	1.77 in	Zinc Cobalt	Black	23 H	45 °	Unshielded	Self Locking	IV MIL-DTL-38999 Series III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M85049/89-25W03 | Datasheet
