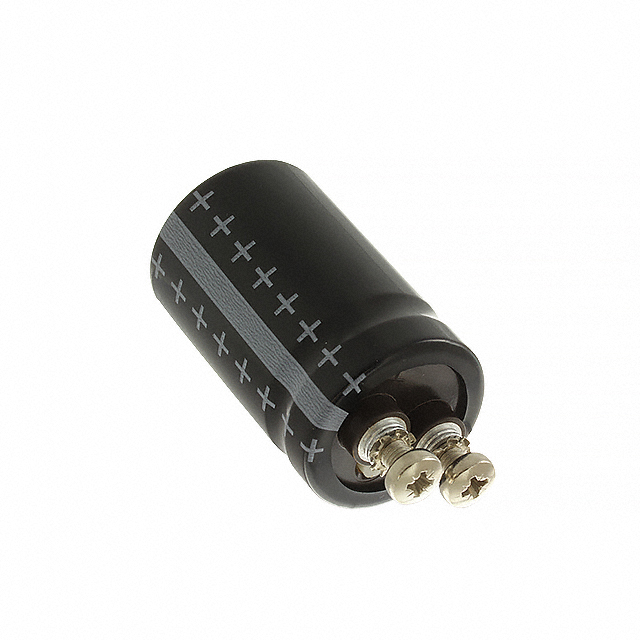

Specification	B41580A5159M000

Applications	General Purpose
Capacitance	15000 µF
ESR (Equivalent Series Resistance)	42 mOhm
Height - Seated (Max)	2.232 in
Impedance	31 mOhm
Lead Spacing	0.5 in
Lifetime	3000 Hrs
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	5.3 A
Size / Dimension Diameter	1.406 in
Tolerance	20 %
Voltage - Rated	25 VAC
