XS630B1MAU20
ActiveINDUCTIVE PROXIMITY SENSOR, OSISENSE XS 630 SERIES, 15 MM, SPST-NO, NO, 1/2"-20UNF CONNECTOR
XS630B1MAU20
ActiveINDUCTIVE PROXIMITY SENSOR, OSISENSE XS 630 SERIES, 15 MM, SPST-NO, NO, 1/2"-20UNF CONNECTOR
Description
General part information
XS630B1MAU20

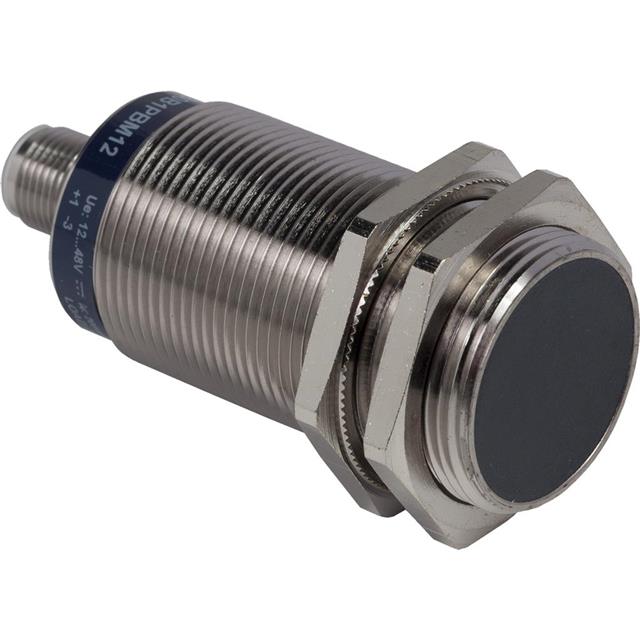

The XS630B1MAU20 is a flush mountable general purpose Inductive Proximity Sensor offers discrete output signal, AC/DC circuit NO output function, male connector 1/2-inch 20 UNF 3-pin electrical connection and frontal detection face. It is made of metal fixed body, PPS front and nickel plated brass enclosure.
Technical Specifications
Parameters and characteristics for this part
| Specification | XS630B1MAU20 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
