XSDA500519H7
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 60 MM, SPST-NO / SPST-NC, OSISENSE XS SERIES,
XSDA500519H7
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, 60 MM, SPST-NO / SPST-NC, OSISENSE XS SERIES,
Description
General part information
XSDA500519H7

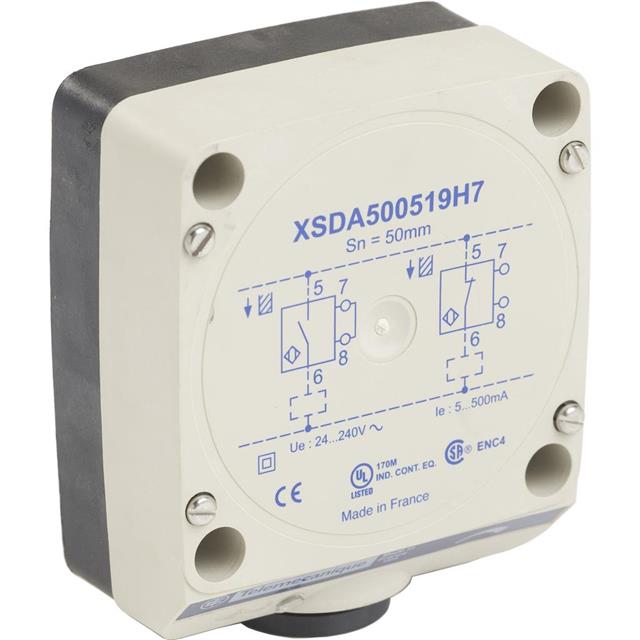

Inductive Proximity Sensor 1.969" (50.00mm) IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | XSDA500519H7 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Plastic |
| Output Type | NO, NC, 2-Wire |
| Package / Case | Module |
| Sensing Distance | 1.969 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Screw Terminal |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
