Description
General part information

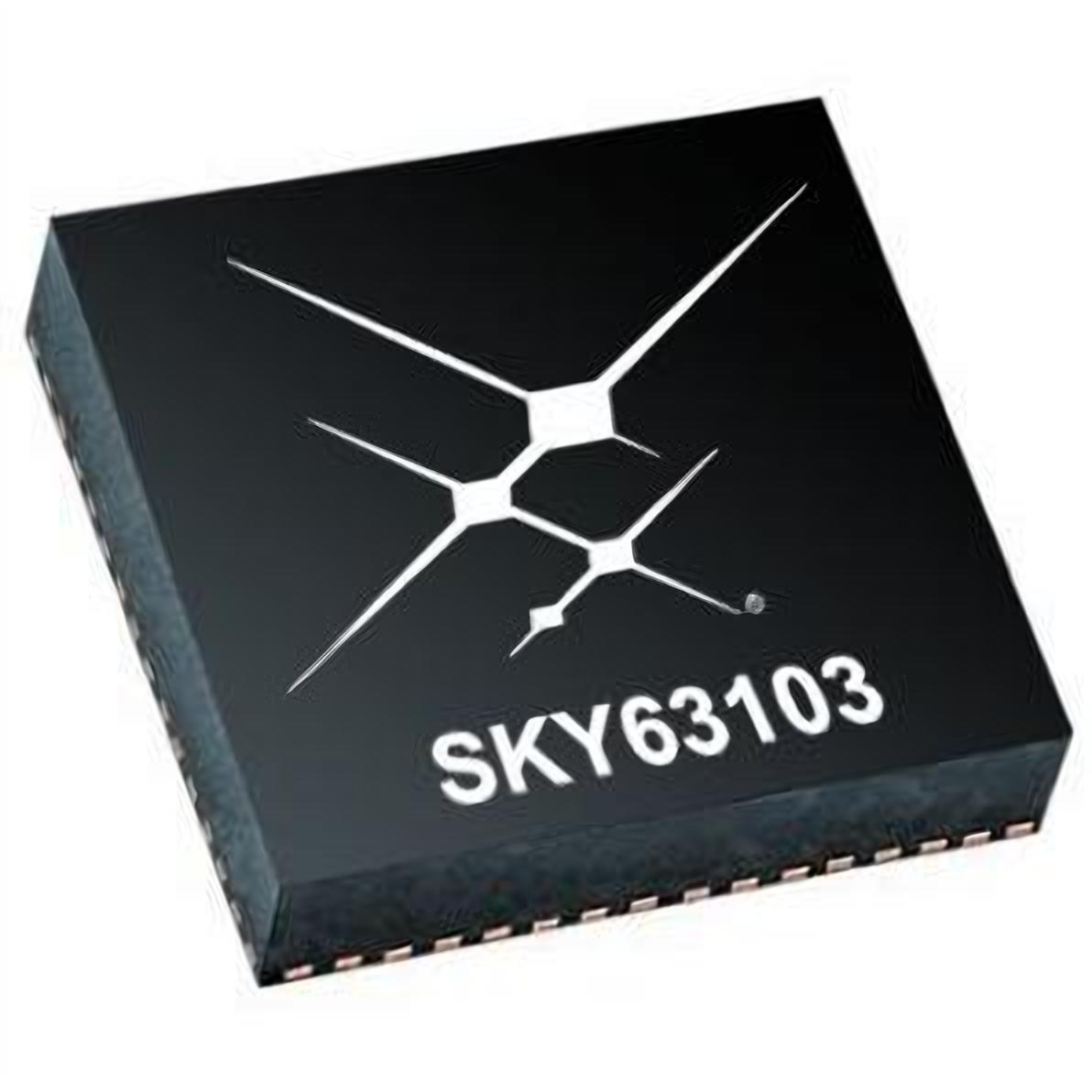

SKY63103D-A-GM
JITTER ATTENUATOR WITH BAW OSCIL
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY63103D-A-GM |
|---|---|
| Differential Input | Yes |
| Differential Output | Yes |
| Divider | Yes |
| Frequency - Max | 3.2GHz, 250MHz |
| Frequency - Max | 3.2 GHz, 250 MHz |
| Input | Clock, LVCMOS, Crystal |
| Mounting Type | Surface Mount |
| Multiplier | No |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS, CML, HCSL, LVPECL, LVDS |
| Package / Case | 64-VFLGA Exposed Pad |
| Package Length | 9 mm |
| Package Name | 64-LGA |
| Package Width | 9 mm |
| PLL | Yes |
| Type | Clock Multiplier, Jitter Attenuator |
| Voltage - Supply (Range 1 Maximum) | 1.89 V |
| Voltage - Supply (Range 1 Minimum) | 1.71 V |
| Voltage - Supply (Range 2 Maximum) | 3.47 V |
| Voltage - Supply (Range 2 Minimum) | 3.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
