Description
General part information

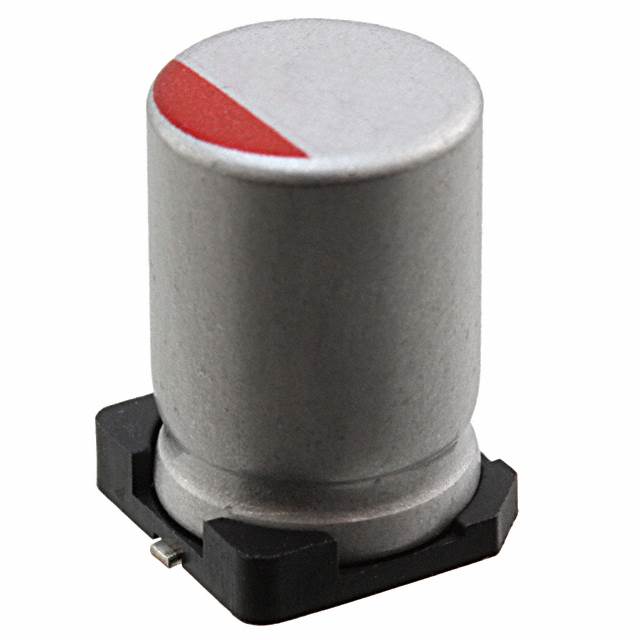

RHS1D391MCN1GS
390 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | RHS1D391MCN1GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 390 µF |
| ESR (Equivalent Series Resistance) | 14 mOhm |
| Height - Seated (Max) | 0.472 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current | 4.95 A, 495 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 20 V |
