VPL24-1100
ActiveTriad Magnetics

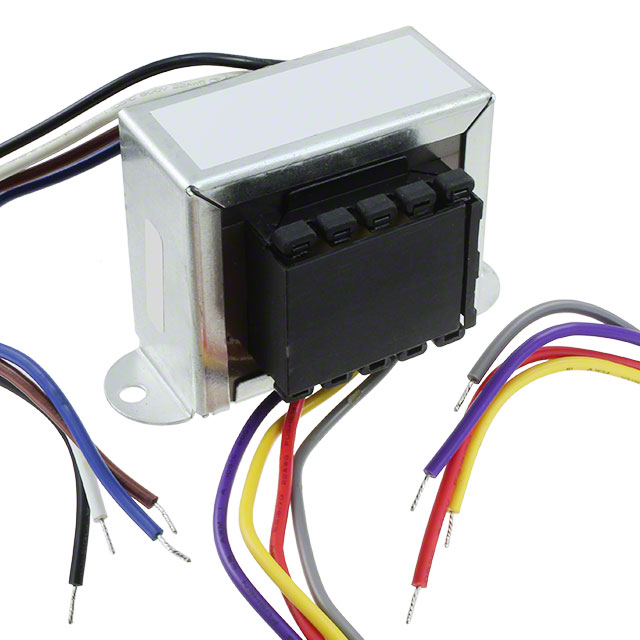

CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 12V, 25 VA, 50HZ / 60HZ
VPL24-1100
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 12V, 25 VA, 50HZ / 60HZ
Description
General part information
VPL24-1100
CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 12V, 25 VA, 50HZ / 60HZ
Technical Specifications
Parameters and characteristics for this part
| Specification | VPL24-1100 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 1.04 A |
| Height - Seated (Max) | 49.22 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 25 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 53.98 mm |
| Size / Dimension Width | 3.25 in |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 3500 Vrms |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 1.3 lbs |
