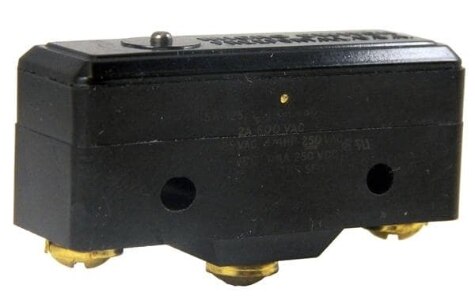

Specification	BZ-2RW84449-A2

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating	0.5 A, 15 A
Differential Travel (Linear)	0.002 in
Mechanical Life (Cycles)	20000000 Cycles
Mounting Type	Chassis Mount
Operating Force (Max)	368 gf
Operating Force (Min)	255 gf
Operating Position (Length)	0.71 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Overtravel (Linear)	0.02 in
Pretravel (Length)	0.015 in
Release Force	113 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

BZ Series

Part	Current Rating	Voltage Rating - AC	Operating Temperature (Min)	Operating Temperature (Max)	Operating Force	Switch Function	Actuator Type	Circuit	Overtravel (Linear)	Voltage Rating - DC	Termination Style	Mounting Type	Pretravel (Length)	Release Force	Differential Travel (Linear)	Features	Operating Position (Length)	Operating Position (Angle)	Pretravel (Angle)
Honeywell Sensing and Productivity Solutions BAF1-2RN28-RH	0.5 A 20 A	125 V	-32 °C	71 °C	0.907 kgf	On-Mom	Lever Roller	SPDT	0.25 in	125 V	Screw Terminal	Chassis Mount	0.219 in	227 gf	0.02 in	Actuator Mounted Right Side
Honeywell Sensing and Productivity Solutions BAF1-2RN2-LH	0.5 A 20 A	125 V	-32 °C	71 °C	0.907 kgf	On-Mom	Lever Roller	SPDT	0.25 in	125 V	Screw Terminal	Chassis Mount	0.219 in	227 gf	0.02 in	Actuator Mounted Left Side
Honeywell Sensing and Productivity Solutions BAF1-2RN28-LH	0.5 A 20 A	125 V	-32 °C	71 °C	0.907 kgf	On-Mom	Lever Roller	SPDT	0.25 in	125 V	Screw Terminal	Chassis Mount	0.219 in	227 gf	0.02 in	Actuator Mounted Left Side
Honeywell Sensing and Productivity Solutions BAF1-2RQ9-RH	0.5 A 20 A	125 V	-32 °C	71 °C	1134 gf	On-Mom	Roller Plunger	SPDT	0.156 in	125 V	Screw Terminal	Chassis Mount	0.094 in	340 gf	0.01 in	Actuator Mounted Right Side	2.547 in
Honeywell Sensing and Productivity Solutions BAF1-3CN18X1	0.5 A 15 A	125 V	-32 °C	71 °C		On-On	Coil Spring	SPDT		125 V	Screw Terminal	Chassis Mount				Reset Function Reset Plunger on Bottom		15 °	15 °
Honeywell Sensing and Productivity Solutions BAF1-2RN2-RH	0.5 A 20 A	125 V	-32 °C	71 °C	0.907 kgf	On-Mom	Lever Roller	SPDT	0.25 in	125 V	Screw Terminal	Chassis Mount	0.219 in	227 gf	0.02 in	Actuator Mounted Right Side
