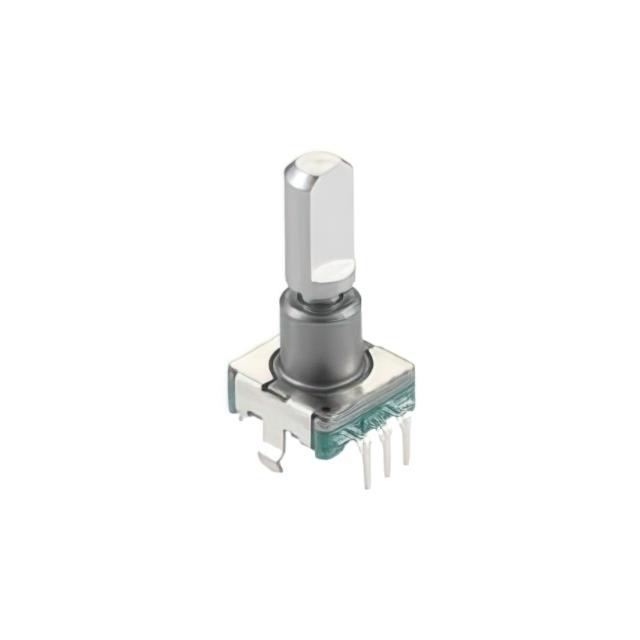

EC11E18244A5
ActiveALPS ALPINE CO., LTD
ENCODER, VERTICAL, 11MM, 36DET,18PPR
EC11E18244A5
ActiveALPS ALPINE CO., LTD
ENCODER, VERTICAL, 11MM, 36DET,18PPR
Description
General part information
EC11E18244A5
Rotary Encoder Incremental 18 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | EC11E18244A5 |
|---|---|
| Actuator Type | 4.5mm Dia Flatted End |
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Incremental |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 18 |
| Rotational Life (Cycles Min) | 15 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
