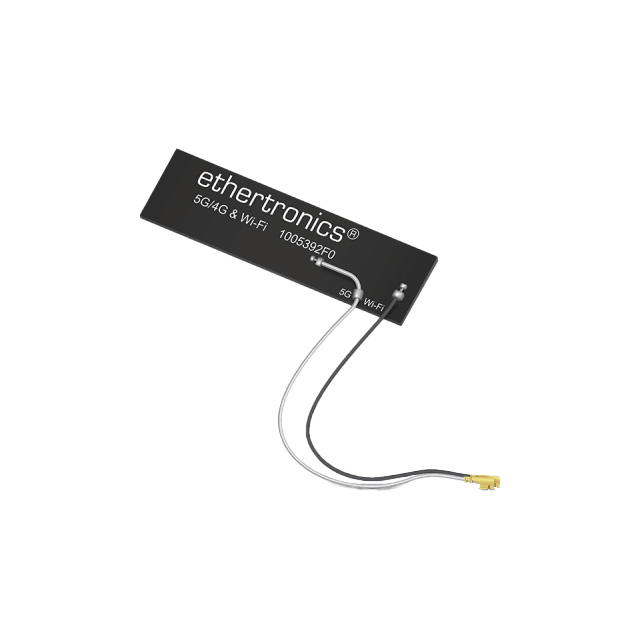

1005392F0-AS40L0600
ActiveKYOCERA AVX
DUAL-FEED 5G/4G & WI-FI DUAL BAN
1005392F0-AS40L0600
ActiveKYOCERA AVX
DUAL-FEED 5G/4G & WI-FI DUAL BAN
Description
General part information
1005392F0-AS40L0600
RF ANTENNA 4G, 5G, 802.11a/b/g/n/ac, LoRa, LPWA, LTE Cat-M, LTE-M, M2M, NB-IoT, SigFox Flat Patch SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 1005392F0-AS40L0600 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | M2M, LTE Cat-M, NB-IoT, LPWA, LTE-M, LoRa, 5G, 802.11a/b/g/n/ac, Sigfox, 4G |
| Features | 600mm, Cable |
| Frequency (Center/Band) | 2.495GHz, 1.8GHz, 788.5MHz, 2.45GHz, 4.15GHz, 5.38GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 2.2 GHz |
| Frequency Range (Band 2) Minimum | 1.4 GHz |
| Frequency Range (Band 3) Maximum | 2.5 GHz |
| Frequency Range (Band 3) Minimum | 2.3 GHz |
| Frequency Range (Band 4) Maximum | 2.69 GHz |
| Frequency Range (Band 4) Minimum | 2.4 GHz |
| Frequency Range (Band 5) Maximum | 5 GHz |
| Frequency Range (Band 5) Minimum | 3.3 GHz |
| Frequency Range (Band 6) Maximum | 5.85 GHz |
| Frequency Range (Band 6) Minimum | 4.9 GHz |
| Gain | 3.1 dBi, 2.7 dBi, 2.2 dBi, 1.3 dBi, 2.3 dBi |
| Height (Max) | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 6 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.2, 2.8 |
| VSWR Maximum | 2.8 |
| VSWR Minimum | 2.2 |
