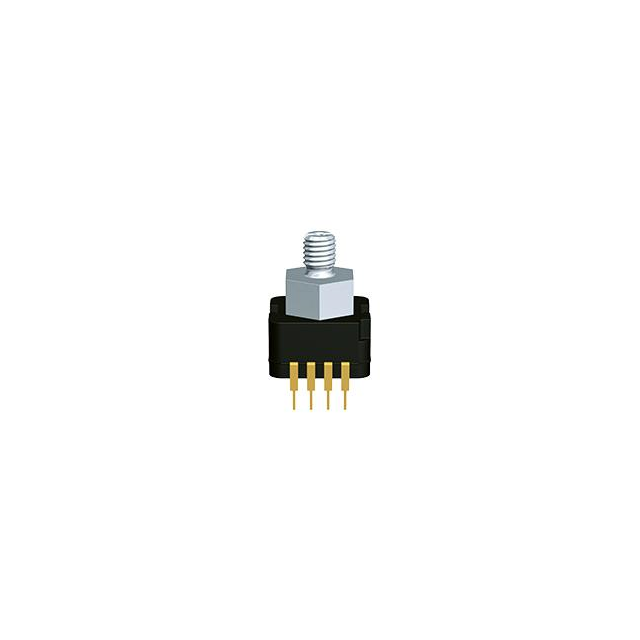

B58611K1500A009
ActiveEPCOS - TDK Electronics
SENSOR 1.45PSIG M5 .05V
B58611K1500A009
ActiveEPCOS - TDK Electronics
SENSOR 1.45PSIG M5 .05V
Description
General part information
B58611K1500A009
Pressure Sensor 1.45PSI (10kPa) Vented Gauge Male - M5 0 mV ~ 50 mV (5V) 8-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | B58611K1500A009 |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Maximum Pressure | 7.25 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 1.45 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 50 mV |
| Output Voltage (Min) | 0 mV |
| Package / Case | 8-DIP Module |
| Port Code | M5 |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply | 10 V |
