CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2.5MM SOLDER ST THRU-HOLE TAPE
2-2299683-6
ActiveTE Connectivity AMP Connectors
CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2.5MM SOLDER ST THRU-HOLE TAPE
Description
General part information
Economy Power 2.5 Series

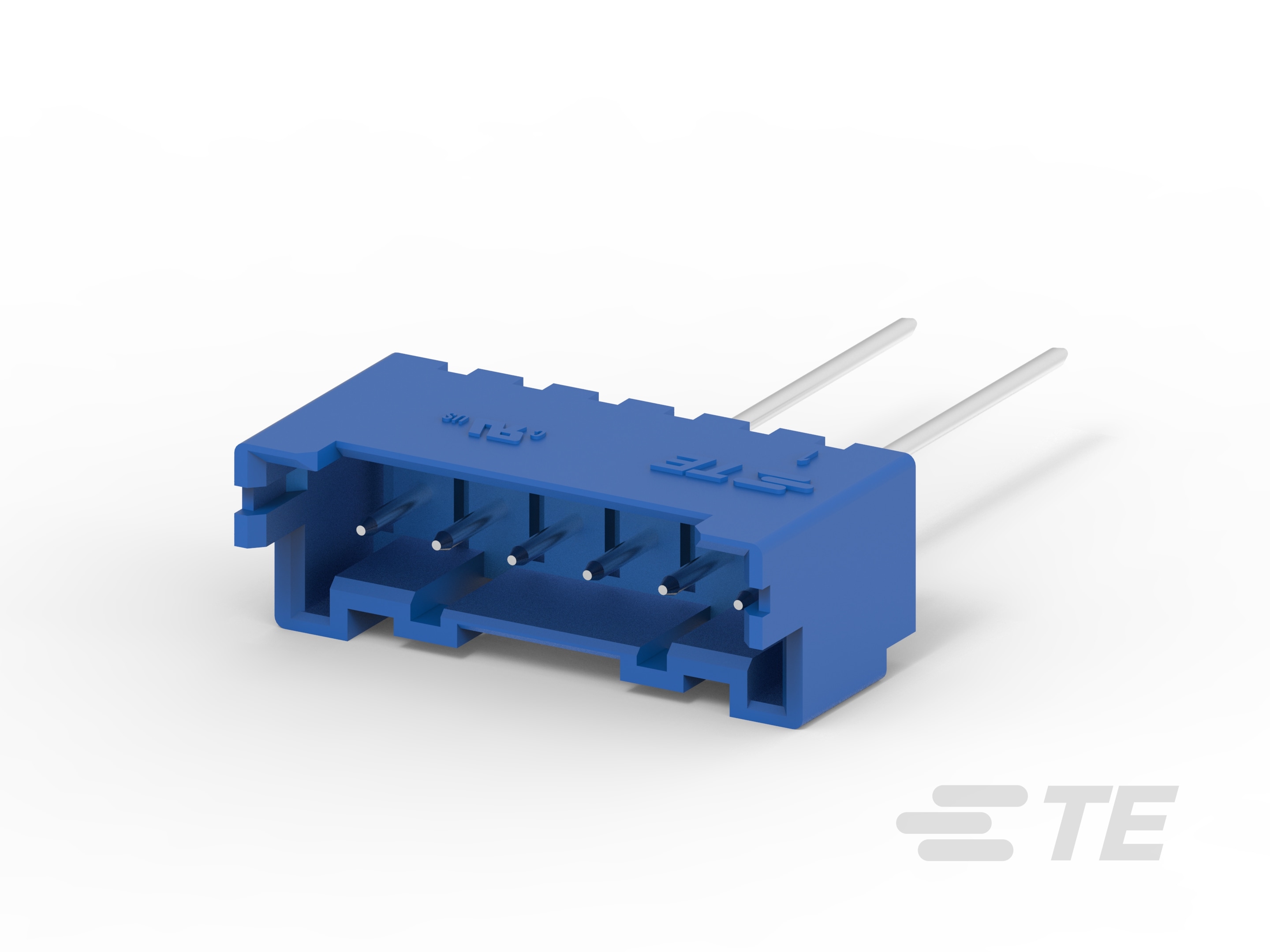

PCB Mount Header, Vertical, Wire-to-Board, 6 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2299683-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 80 µin |
| Contact Length - Mating | 0.142 in |
| Contact Length - Post | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 4.2 A |
| Fastening Type | Latch Holder |
| Insulation Color | Blue |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
