FIT68-5-B
ActiveTriad Magnetics
FIXED IND 33.15UH 5.7A 28.8 MOHM
FIT68-5-B
ActiveTriad Magnetics
FIXED IND 33.15UH 5.7A 28.8 MOHM
Description
General part information
FIT68-5-B

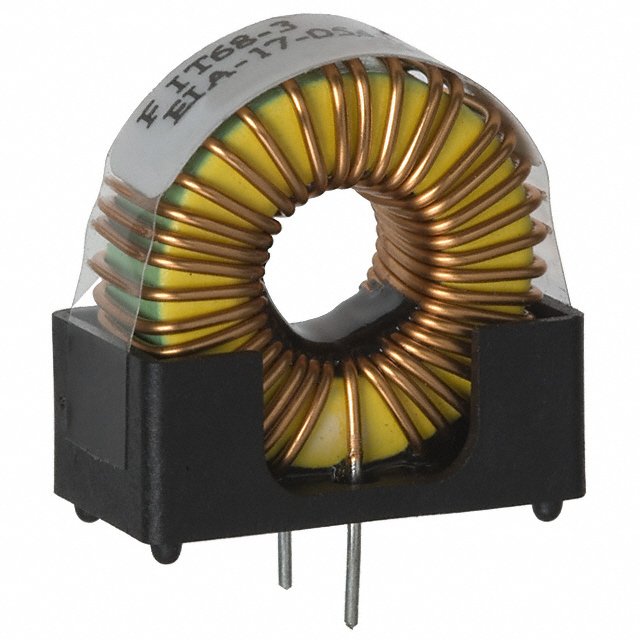

33.15 µH Unshielded Toroidal Inductor 5.7 A 28.8mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | FIT68-5-B |
|---|---|
| Current Rating | 5.7 A |
| DC Resistance (DCR) (Max) | 28.8 mOhm |
| Height - Seated (Max) | 0.95 in |
| Inductance | 33.15 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.875 in |
| Size / Dimension Width | 0.475 in |
| Type | Toroidal |
