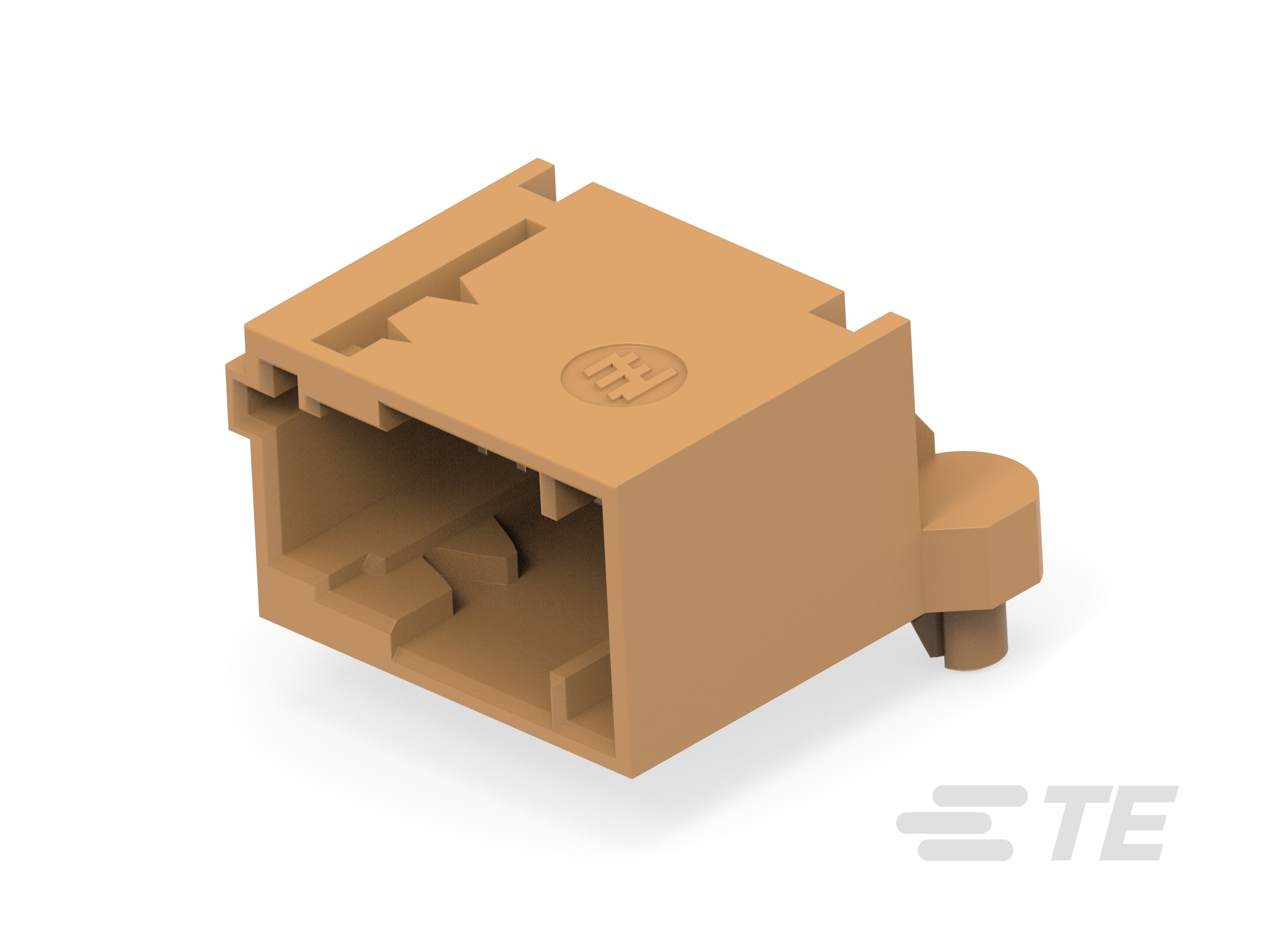

Specification	1801434-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.264 in
Contact Length - Post	0.138 in
Contact Material	Copper Tin
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Brown
Insulation Height	0.776 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	95 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	13.5 V
