HSS02-B20-P318
ActiveSame Sky (Formerly CUI Devices)

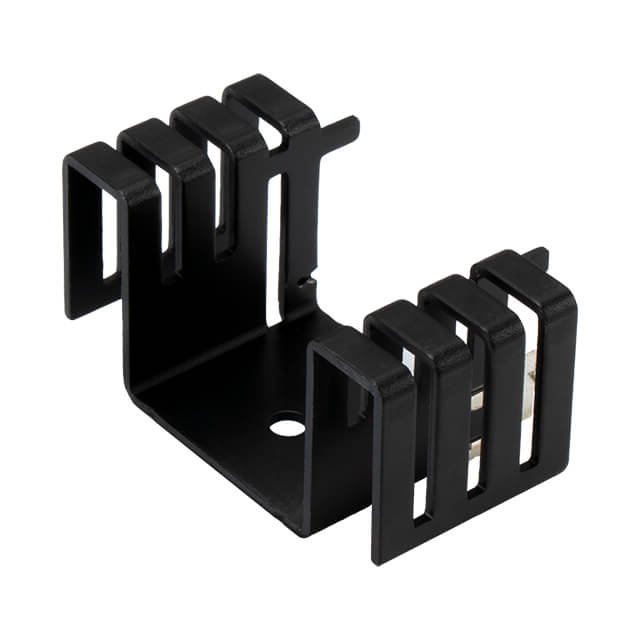

HEAT SINK, STAMPING, TO-220, 23.
HSS02-B20-P318
ActiveSame Sky (Formerly CUI Devices)
HEAT SINK, STAMPING, TO-220, 23.
Description
General part information
HSS02-B20-P318
Heat Sink TO-220 Aluminum Alloy 6.9W @ 75°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS02-B20-P318 |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.95 in |
| Length | 1.9 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 6.9 W |
| Shape | Rectangular |
| Thermal Resistance | 4.8 °C/W, 10.9 °C/W |
| Type | Vertical, Board Level |
| Width | 0.93 in |
