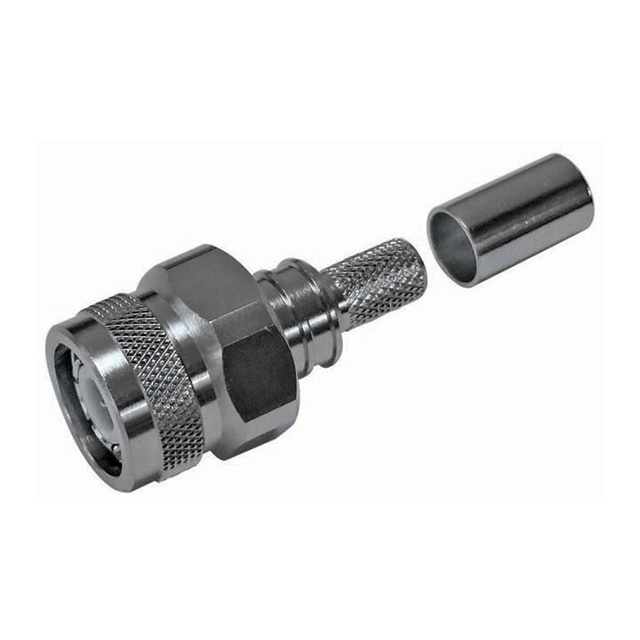

Specification	EZ-240-TM-PL-X

Cable Group	LMR-240
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Fastening Type	Threaded
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

EZ-240 Series

Part	Connector Style	Cable Group	Contact Termination	Shield Termination	Connector Type	Fastening Type	Mounting Type	Number of Ports	Housing Color	Impedance	Frequency - Max	Center Contact Material	Mating Cycles	Body Material	Center Contact Plating	Body Finish	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Includes Total Count	Includes
McGill Microwave Systems EZ-240-BM-RA-X	BNC	LMR-240	Push On	Crimp	Male Pin Plug	Bayonet Lock	Free Hanging (In-Line) Right Angle	1	Silver	50 Ohm	6000 MHz	Brass	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	500 V
McGill Microwave Systems EZ-240-QNM-RA-X	QN	LMR-240	Crimp	Crimp	Female Socket Jack	Snap-On	Free Hanging (In-Line)	1	Silver	50 Ohm	6000 MHz	Beryllium Copper	100 cycles	Brass	Gold	Tin	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C		2 pcs	Connector Ferrule
McGill Microwave Systems EZ-240-QM-RA-X	QMA	LMR-240	Push On	Crimp	Male Pin Plug	Snap-On	Free Hanging (In-Line) Right Angle	1	Silver	50 Ohm	6000 MHz	Beryllium Copper	100 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
McGill Microwave Systems EZ-240-4310M-RA-X	TNC	LMR-195	Crimp	Crimp	Male Pin Plug	Threaded	Free Hanging (In-Line)	1	Silver	50 Ohm	6000 MHz	Beryllium Copper	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C		2 pcs	Connector Ferrule
McGill Microwave Systems EZ-240-FM-75-X	BNC	LMR-240	Crimp	Crimp	Male Pin Plug	Bayonet Lock	Free Hanging (In-Line)	1	Silver	50 Ohm	2.5 GHz	Beryllium Copper	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C		2 pcs	Connector Ferrule
McGill Microwave Systems EZ-240-716M-RA-X	4.3/10	LMR-240	Crimp	Crimp	Male Pin Plug	Threaded	Free Hanging (In-Line) Right Angle	1	Silver	50 Ohm	6000 MHz				Gold			85 °C	-40 °C		2 pcs	Connector Ferrule
McGill Microwave Systems EZ-240-4310M-X	4.3/10	LMR-240	Crimp Push On	Crimp	Male Pin Plug	Threaded	Free Hanging (In-Line)	1	Silver	50 Ohm	6000 MHz	Beryllium Copper	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	2.5 kV
McGill Microwave Systems EZ-240-BM-X	BNC	LMR-240	Push On	Crimp	Male Pin Plug	Bayonet Lock	Free Hanging (In-Line)	1	Silver	50 Ohm	4 GHz	Phosphor Bronze	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	500 V
McGill Microwave Systems EZ-240-BM-75-X	BNC	LMR-240	Crimp	Crimp	Male Pin Plug	Bayonet Lock	Free Hanging (In-Line) Right Angle	1	Silver	75 Ohm	2.5 GHz	Beryllium Copper		Brass	Gold		Polytetrafluoroethylene (PTFE)	85 °C	-40 °C		2 pcs	Connector Ferrule
McGill Microwave Systems EZ-240-TM-RA-X	TNC	LMR-240	Push On	Crimp	Male Pin Plug	Threaded	Free Hanging (In-Line) Right Angle	1	Silver	50 Ohm	6000 MHz	Brass	500 cycles	Brass	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	500 V
