DG9025MF1

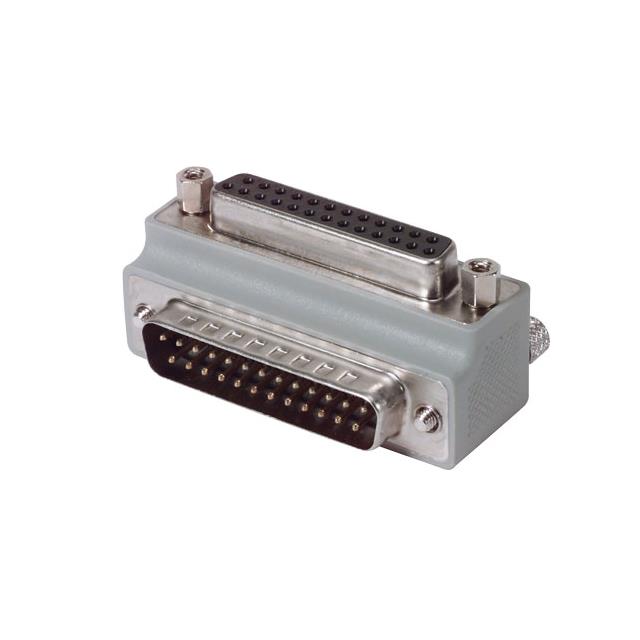

DG9025MF1 is a DB25 male/female, cable exit 1, low profile right angle adapter. Connecting cables in tight spaces can be a problem in many applications. This low-profile right-angle D-sub adapter solves this problem by allowing cables to be connected at a 90-degree angle. It is fully shielded and is over-molded with gray PVC. Mating hardware is reversible allowing for use in virtually any application. Typical applications are D-sub confined space, OEM applications, and enclosure applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | DG9025MF1 |
|---|---|
| Connector Style | Connector Saver |
| Convert From (Adapter End) Pin Count | 25 |
| Convert From (Adapter End) Pin Gender | Male |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | Pin Female, D-Sub |
| Convert To (Adapter End) Pin Count | 25 pins |
| Features | Grounding Indents |
| Housing Color | Gray |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -15 °C |
| Shielding | Shielded |
