PCM120T-2R2M-D
ActiveEPCOS - TDK Electronics
FIXED IND 2.2UH 27.1A 2.45OHM SM
PCM120T-2R2M-D
ActiveEPCOS - TDK Electronics
FIXED IND 2.2UH 27.1A 2.45OHM SM
Description
General part information
PCM120T-2R2M-D

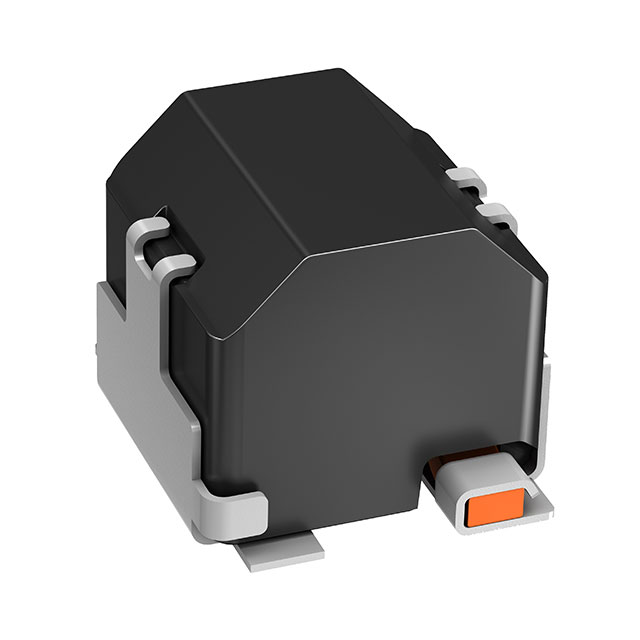

2.2 µH Shielded Drum Core, Wirewound Inductor 27.1 A 2.45mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCM120T-2R2M-D |
|---|---|
| Current - Saturation (Isat) | 24.8 A |
| Current Rating | 27.1 A |
| DC Resistance (DCR) | 2.45 mOhm |
| Height - Seated (Max) | 0.453 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.5 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
