2443725-8
ActiveTE Connectivity AMP Connectors

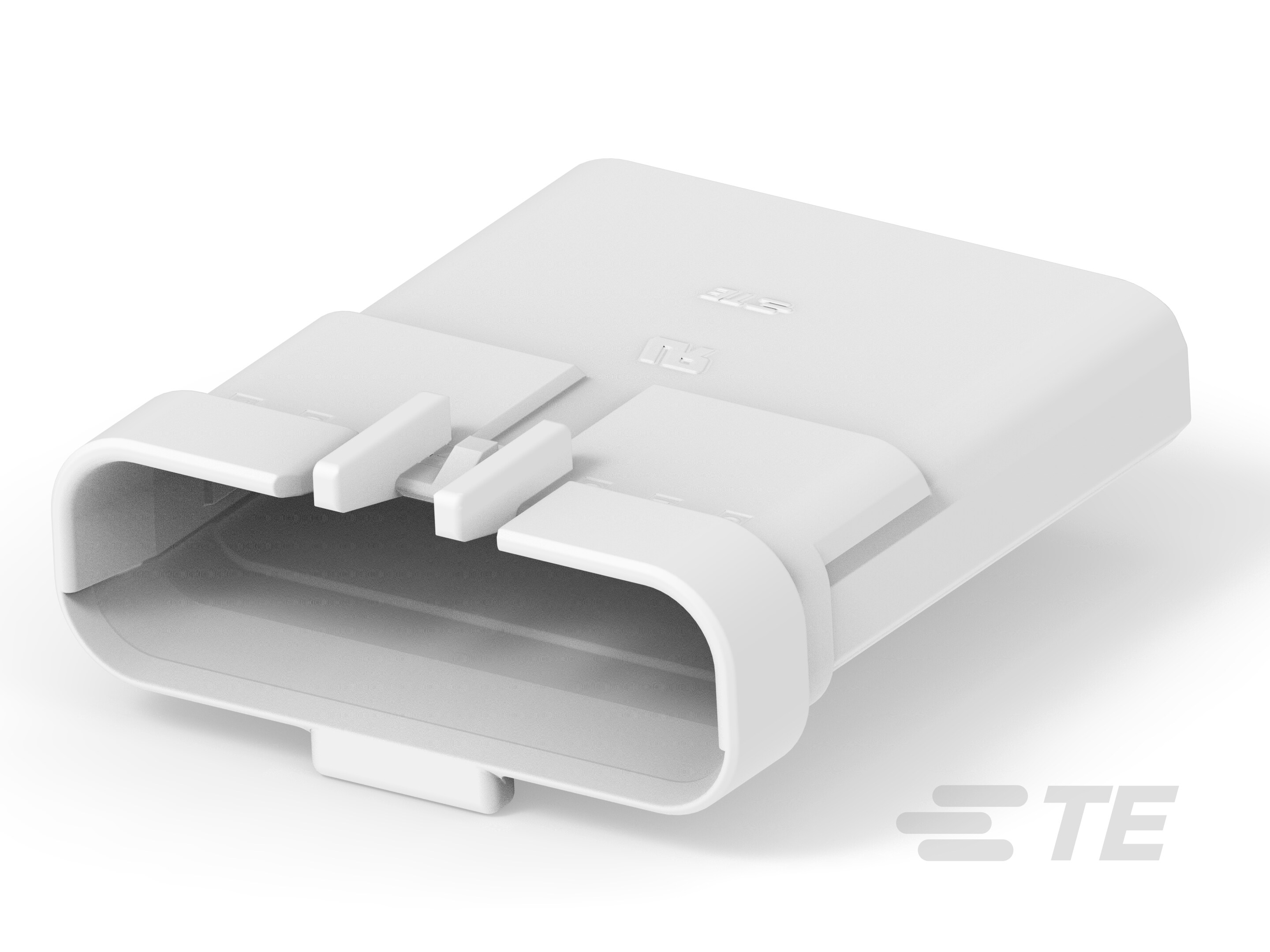

CAP HOUSING FREE HANGING 8PIN
2443725-8
ActiveTE Connectivity AMP Connectors
CAP HOUSING FREE HANGING 8PIN
Description
General part information
2443725-8
8 Position, Cap, Housing, Wire-to-Wire, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 250 VAC, Sealable, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2443725-8 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Sealing Performance Validation for SDL2.5 Waterproof Connector
Datasheet
Waterproof Signal Double Lock Connector System - Application Specification
SDL2.5 Waterproof Connectors
Product Specification - Waterproof Signal Double Lock and Twist and Lock Connector System
SDL2.5 water proof connector
ENG_CD_2443725_A1.pdf
2443725-8 | Datasheet
