Description
General part information

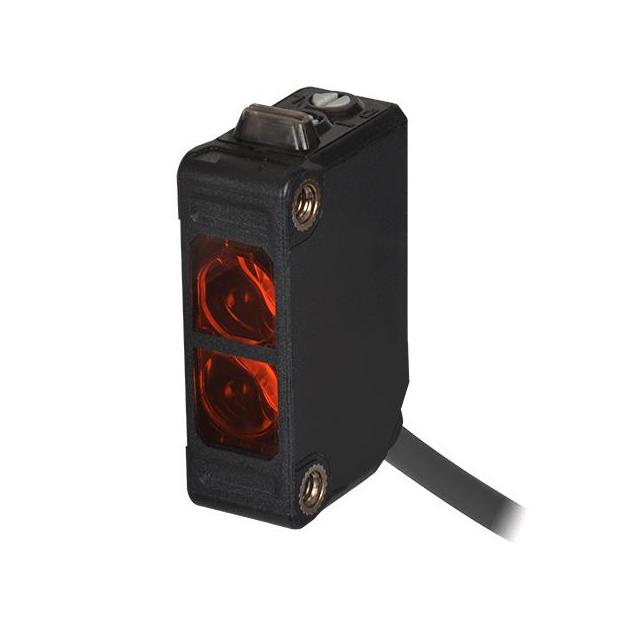

BJR100-DDT
Reflective, Diffuse Optical Sensor 3.937" (100mm) NPN - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BJR100-DDT |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 850 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, NPN - Dark-ON, Light-ON\Dark-ON, NPN - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 3.937 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
