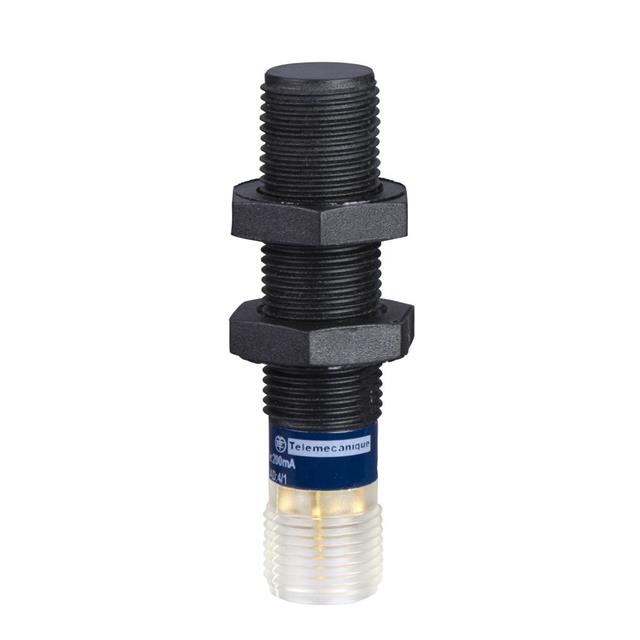

XS4P12PA370D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 4 MM, PNP, M12, 12 TO 48 V, M12 CONNECTOR
XS4P12PA370D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS SERIES, 4 MM, PNP, M12, 12 TO 48 V, M12 CONNECTOR
Description
General part information
XS4P12PA370D
Inductive Proximity Sensor 0.157" (4mm) IP67 Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS4P12PA370D |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
