1-2311621-1
ActiveTE Connectivity AMP Connectors

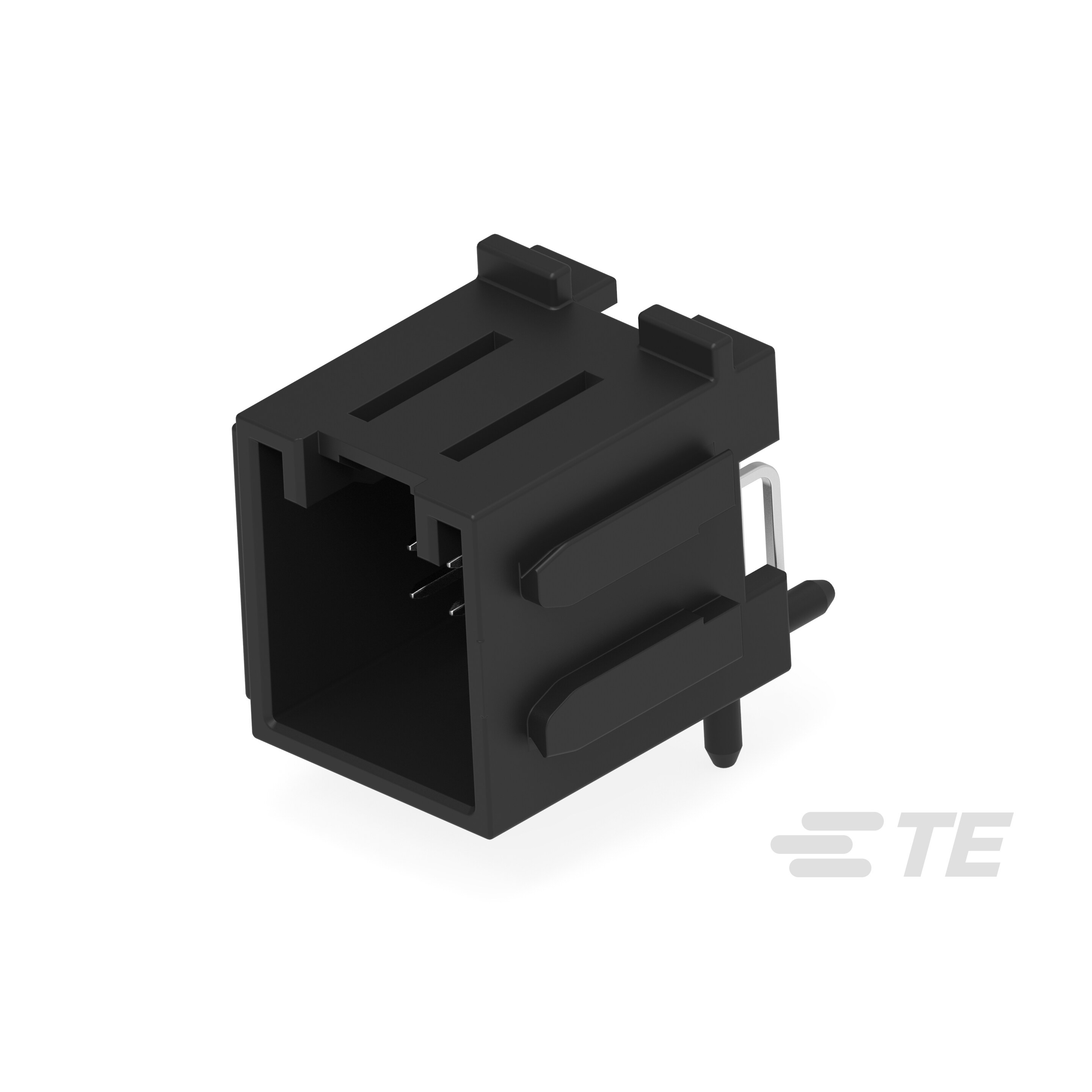

8POS,TAB0.63X0.63,HDR ASSY,90DEG,SLDR
1-2311621-1
ActiveTE Connectivity AMP Connectors
8POS,TAB0.63X0.63,HDR ASSY,90DEG,SLDR
Description
General part information
1-2311621-1
Horizontal, Wire-to-Board, 8 Position, 2 Rows, 2.5mm [.098in] Centerline, Tin (Sn), Printed Circuit Board, Black, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2311621-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.236 in |
| Contact Length - Post | 0.11 in |
| Contact Material | Copper Zinc |
| Contact Shape | Square |
| Contact Type | Tab |
| Current Rating | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.748 in |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
