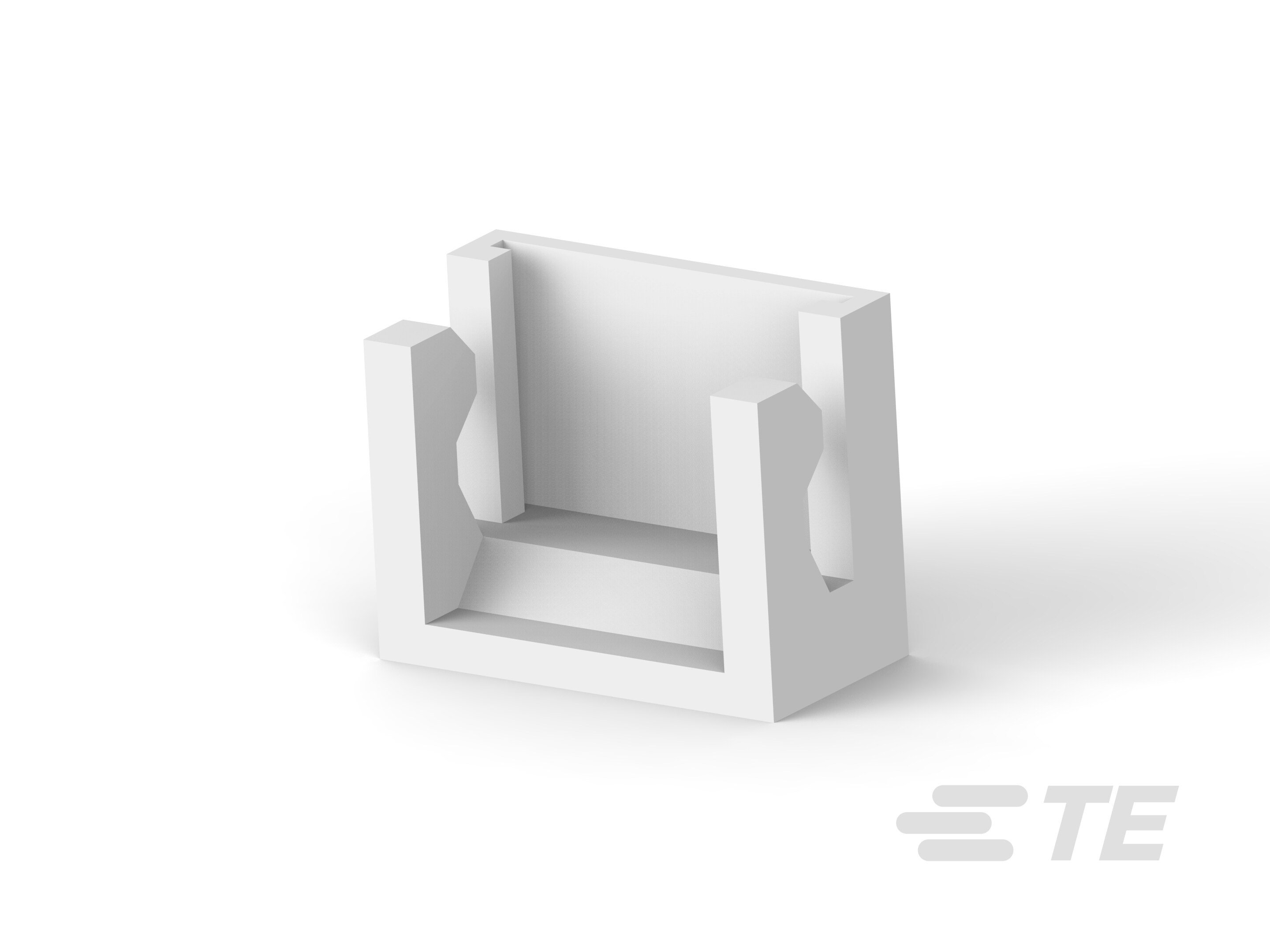

2.5MM,HDR,2POS,VERTICAL, CONNECTOR-440052-2

440052-2

Active
TE Connectivity AMP Connectors

2.5MM,HDR,2POS,VERTICAL, CONNECTOR

Find alt
2.5MM,HDR,2POS,VERTICAL, CONNECTOR-440052-2

440052-2

Active
TE Connectivity AMP Connectors

2.5MM,HDR,2POS,VERTICAL, CONNECTOR

Find alt

Description

General part information

440052-2

PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 2.5 mm [.098 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Solder, Signal

Technical Specifications

Parameters and characteristics for this part

Specification440052-2
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating80 µin
Contact Length - Mating0.136 in
Contact Length - Post0.134 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Fastening TypeFriction Lock
Insulation ColorNatural
Insulation Height0.236 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-25 °C
Overall Contact Length0.335 in
Pitch - Mating0.098 in
ShroudingShrouded - 3 Wall
StyleCable/Wire, Board
TerminationPress-Fit, Solder
Voltage Rating250 V
