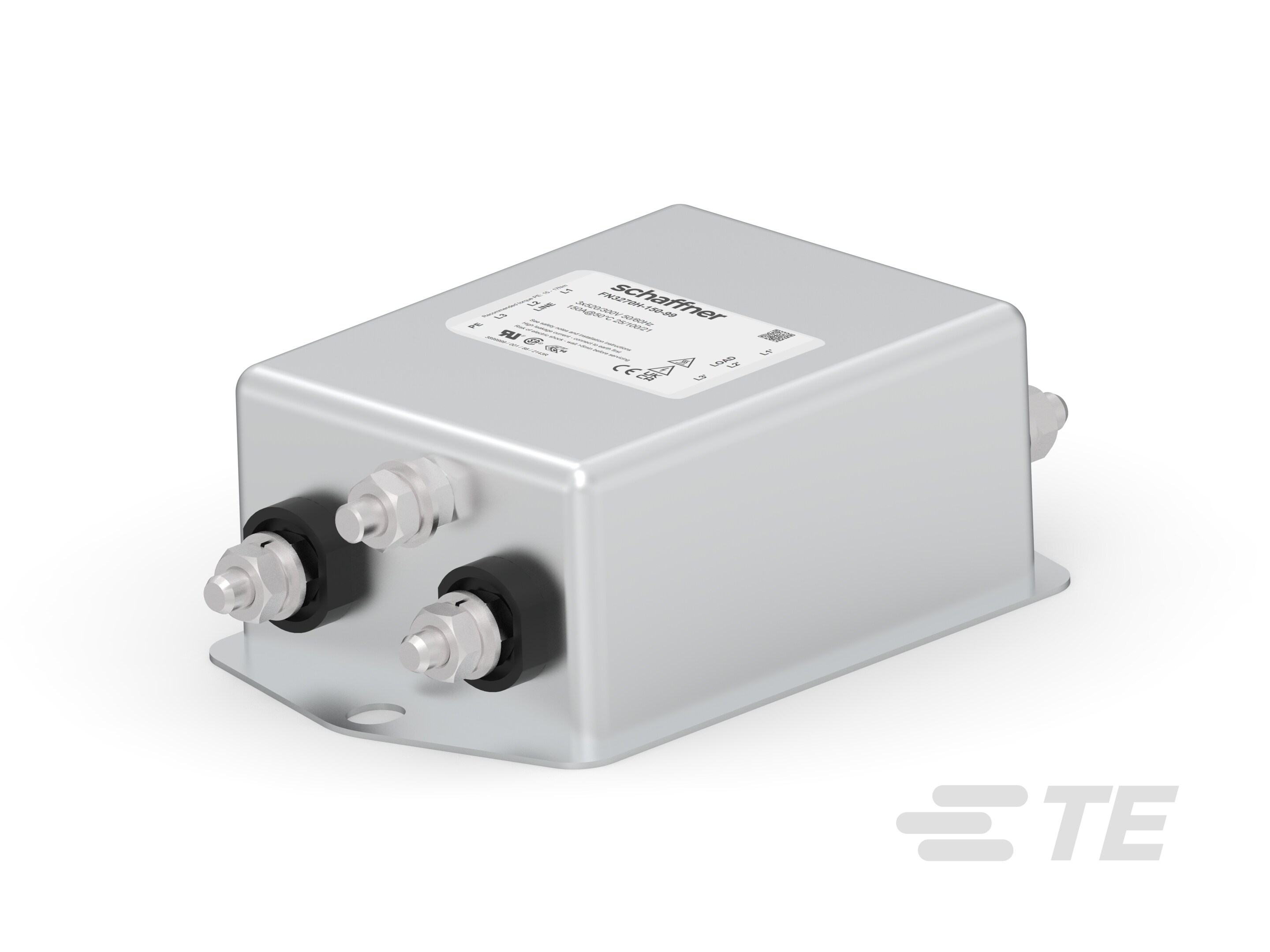

Specification	FN2010M-20-08

Applications	General Purpose
Approval Agency	UR, CE, ENEC, CSA
Configuration	Single Stage
Current	20 A
Filter Type	Single Phase
Frequency - Operating (Max)	400 Hz
Frequency - Operating (Min)	0 Hz
Inductance	600 µH
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Threaded Post (M4)
Voltage - Rated AC	250 V
Voltage - Rated DC	250 V

Schaffner FN2010 Series

...

Part	Configuration	Termination Style	Filter Type	Voltage - Rated AC	Approval Agency	Applications	Current	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated DC	Frequency - Operating (Max)	Inductance	Mounting Type
TE Connectivity AMP Connectors FN2010N1-1-06	Single Stage	Quick Connect	Single Phase	250 V	CE CSA ENEC UR	General Purpose	1 A	-25 °C	100 °C	250 V	400 Hz	12 mH	Chassis Mount
TE Connectivity AMP Connectors FN2010A-10-06	Single Stage	Quick Connect	Single Phase	250 V	CSA ENEC UR	Safety	10 A	-25 °C	100 °C		400 Hz	800 µH	Chassis Mount
TE Connectivity AMP Connectors FN2010B-60-24	Single Stage	Threaded Post (M6)	Single Phase	250 V	CE CSA ENEC UKCA UR	Medical	60 A	-25 °C	100 °C	250 V	400 Hz	1 mH	Chassis Mount
TE Connectivity AMP Connectors FN2010-6-07	Single Stage	Wire Leads	Single Phase	250 V	CSA ENEC UR	General Purpose	6 A	-25 °C	100 °C		400 Hz	1 mH	Chassis Mount
TE Connectivity AMP Connectors FN2010B-10-06	Single Stage	Quick Connect	Single Phase	250 V	CSA ENEC UR	General Purpose	10 A	-25 °C	100 °C		400 Hz	800 µH	Chassis Mount
TE Connectivity AMP Connectors FN2010A-1-07	Single Stage	Wire Leads	Single Phase	250 V	CE CQC CSA ENEC UKCA UR	Safety	1 A	-25 °C	100 °C	250 V	400 Hz	12 mH	Chassis Mount
TE Connectivity AMP Connectors FN2010-12-07	Single Stage	Wire Leads	Single Phase	250 V	CSA ENEC UR	General Purpose	12 A	-25 °C	100 °C		400 Hz	700 µH	Chassis Mount
TE Connectivity AMP Connectors FN2010-60-24	Single Stage	Threaded Post (M6)	Single Phase	250 V	CSA ENEC UR	General Purpose	60 A	-25 °C	100 °C		400 Hz	1 mH	Chassis Mount
TE Connectivity AMP Connectors FN2010-16-08	Single Stage	Threaded Post (M4)	Single Phase	250 V	CE CSA ENEC UR	General Purpose	16 A	-25 °C	100 °C	250 V	400 Hz	700 µH	Chassis Mount
TE Connectivity AMP Connectors FN2010A-1-06	Single Stage	Quick Connect	Single Phase	250 V	CSA ENEC UR	Safety	1 A	-25 °C	100 °C		400 Hz	12 mH	Chassis Mount
