LCCA30857/RD-FT3
ActivePasternack
HD BNC M TO HD BNC M USING RED B
LCCA30857/RD-FT3
ActivePasternack
HD BNC M TO HD BNC M USING RED B
Description
General part information
LCCA30857/RD-FT3

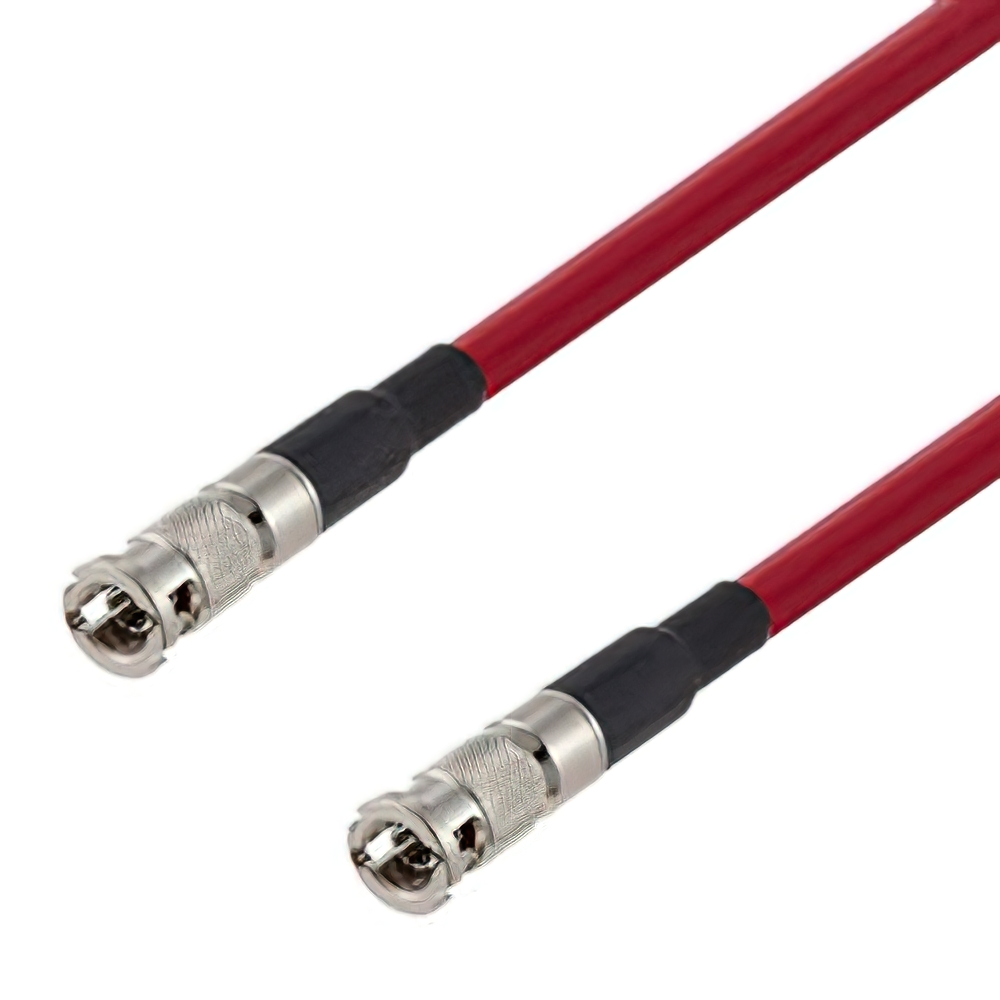

Cable Assembly Coaxial HD-BNC to HD-BNC Belden 1855A 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30857/RD-FT3 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 1855A |
| Color | Red |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
