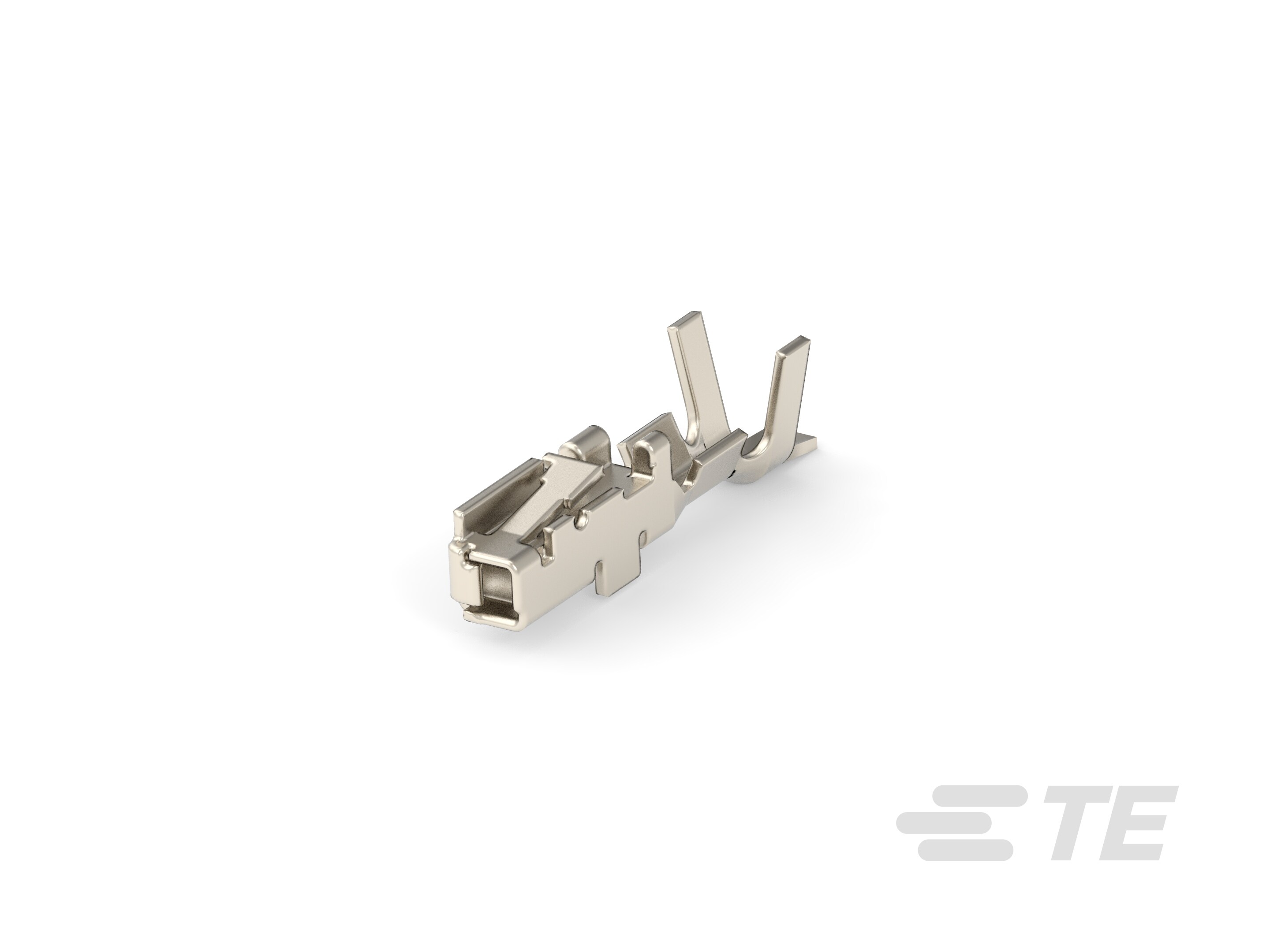

Specification	2367817-1

Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Termination	Crimp
Pin or Socket	Socket
Type	Stamped
Wire Gauge (AWG) (Max)	30 AWG
Wire Gauge (AWG) (Min)	27.5 AWG
