108458096031026
ObsoleteKYOCERA AVX
CONN DIN HDR 96POS PCB RA GOLD
108458096031026
ObsoleteKYOCERA AVX
CONN DIN HDR 96POS PCB RA GOLD
Description
General part information
108458096031026

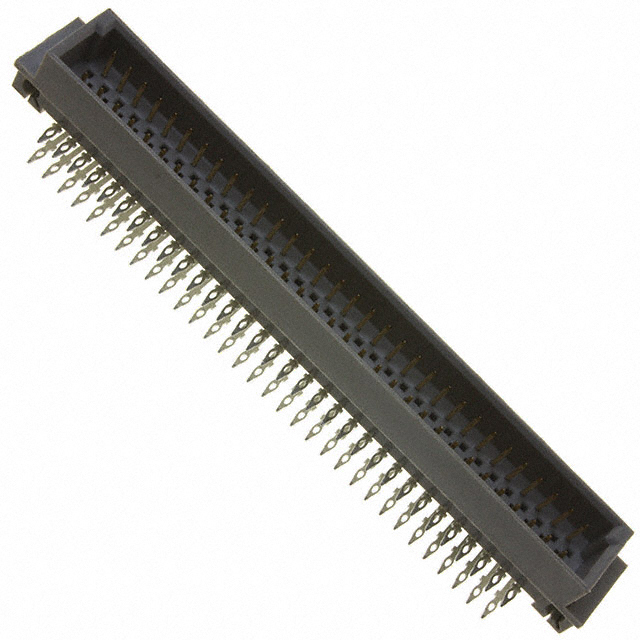

96 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 108458096031026 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Polyester Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | 64 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
| Style | C |
| Termination | Press-Fit |
