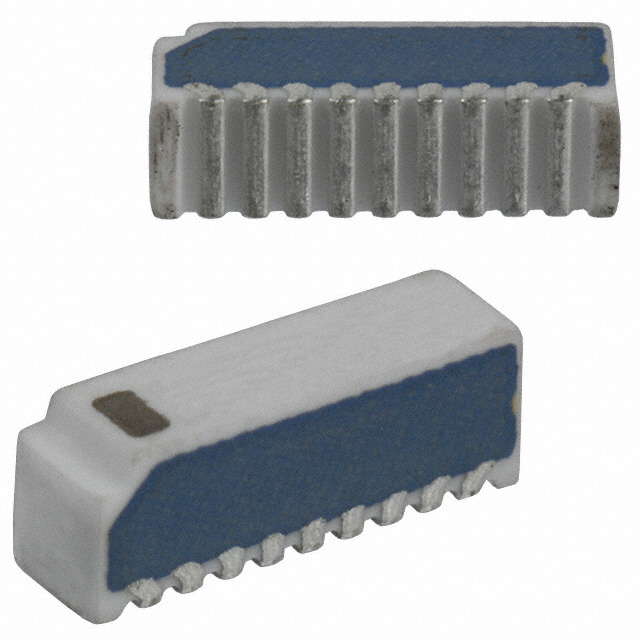

753181102GTR
ObsoleteCTS Resistor Products
RES ARRAY 16 RES 1K OHM 18DRT
753181102GTR
ObsoleteCTS Resistor Products
RES ARRAY 16 RES 1K OHM 18DRT
Description
General part information
753181102GTR
1k Ohm ±2% 40mW Power Per Element Bussed 16 Resistor Network/Array ±200ppm/°C 18-DRT
Technical Specifications
Parameters and characteristics for this part
| Specification | 753181102GTR |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.1 in |
| Mounting Type | Surface Mount |
| Number of Pins | 18 pins |
| Number of Resistors | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 18-DRT |
| Power Per Element | 40 mW |
| Resistance | 1 kOhm |
| Size / Dimension Length | 0.27 in |
| Size / Dimension Width | 0.08 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
