STDCTX1-38.4M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 38.4000MHZ 7PF SMD
STDCTX1-38.4M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
CRYSTAL 38.4000MHZ 7PF SMD
Description
General part information
STDCTX1-38.4M

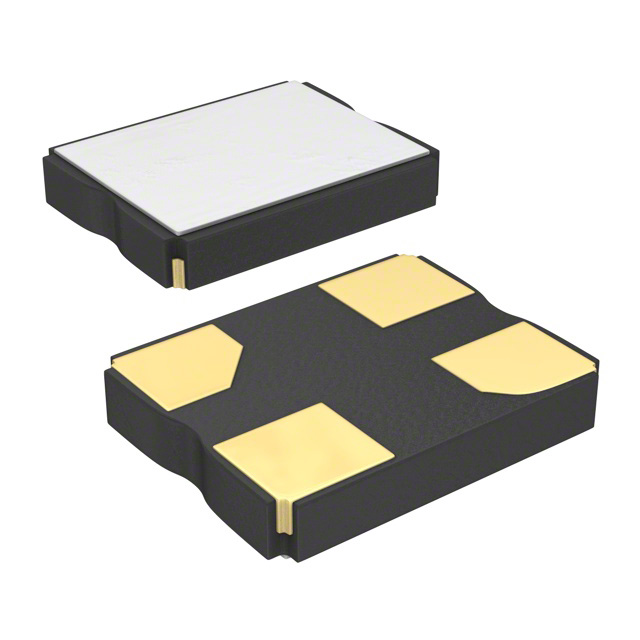

38.4 MHz ±10ppm Crystal 7pF 50 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | STDCTX1-38.4M |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 38.4 MHz |
| Frequency Stability | 12 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.039 in |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
