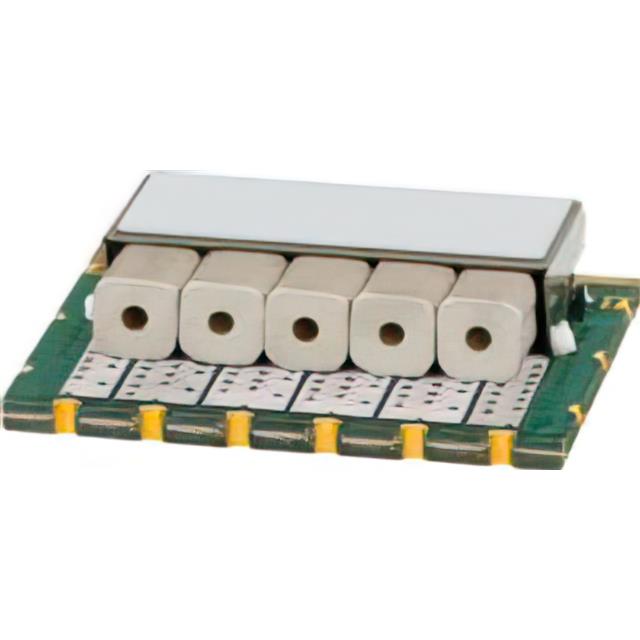

CBP-1000F+
ActiveMini-Circuits
RF FILTER BAND PASS 1GHZ 17SMD
CBP-1000F+
ActiveMini-Circuits
RF FILTER BAND PASS 1GHZ 17SMD
Description
General part information
CBP-1000F+
1GHz Center Frequency Band Pass RF Filter (Radio Frequency) 200MHz Bandwidth 1.6dB 17-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CBP-1000F+ |
|---|---|
| Bandwidth | 200 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 1 GHz |
| Height (Max) | 0.254 in |
| Insertion Loss | 1.6 dB |
| Mounting Type | Surface Mount |
| Package / Case | 17-SMD Module |
| Size / Dimension Length | 1.05 in |
| Size / Dimension Width | 0.875 in |
