FFLB6A0387K--
ActiveKYOCERA AVX

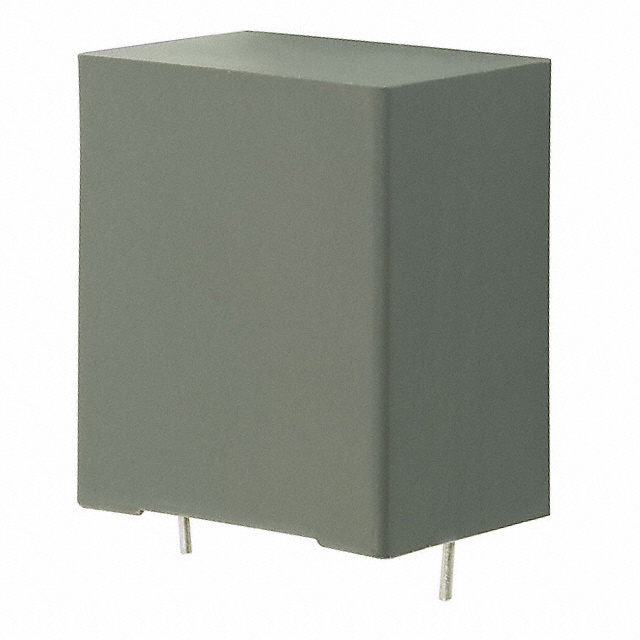

CAP FILM 380UF 10% 680VDC RADIAL
FFLB6A0387K--
ActiveKYOCERA AVX
CAP FILM 380UF 10% 680VDC RADIAL
Description
General part information
FFLB6A0387K--
380 µF Film Capacitor 680V Polypropylene (PP) Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFLB6A0387K-- |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 380 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 3.898 in |
| Lead Spacing | 1.772 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.858 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 680 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
