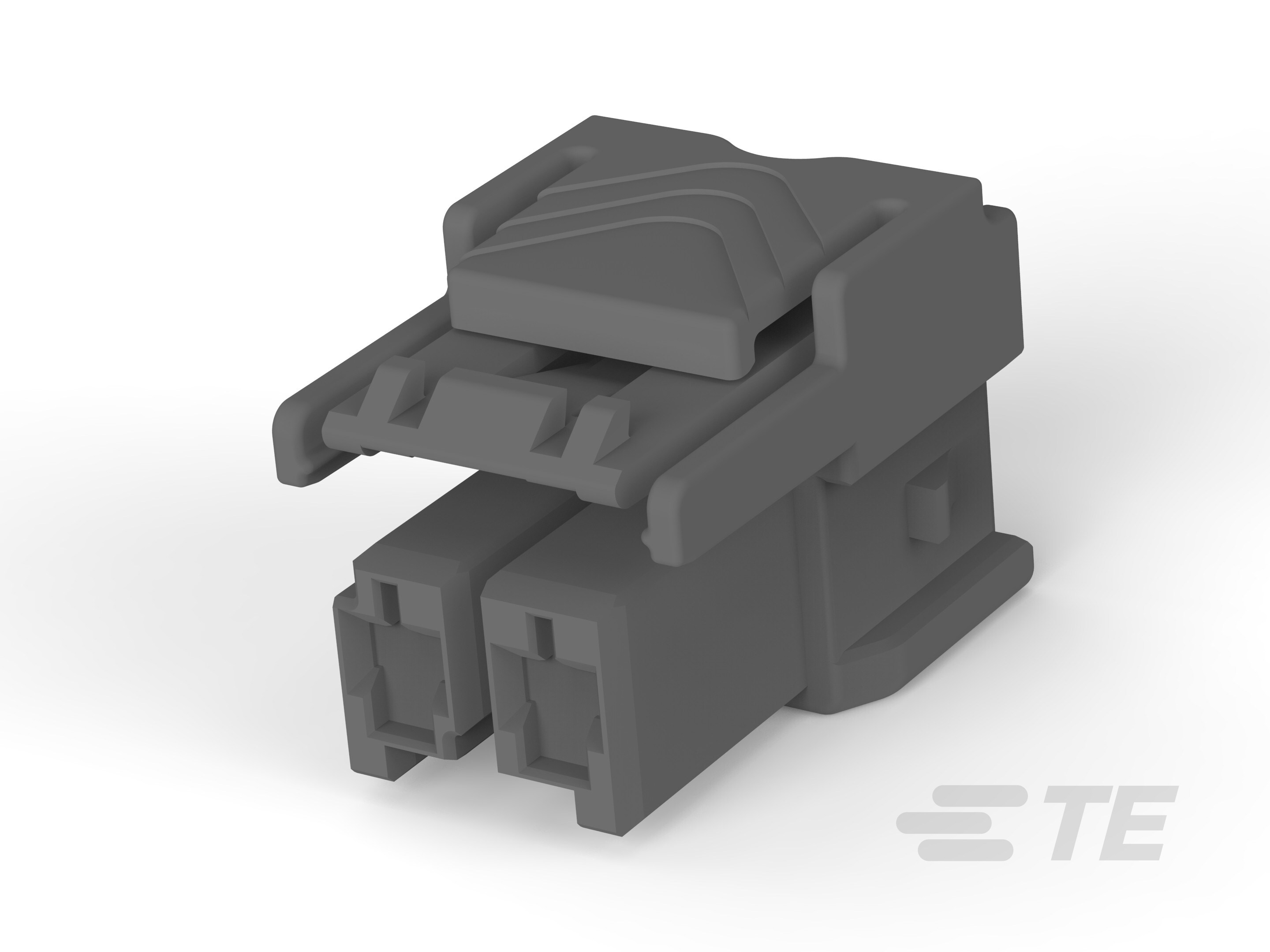

PTL 1X2 PLUG HSG GLW WIRE KEY A DGR-5-2232265-2

5-2232265-2

Active
TE Connectivity AMP Connectors

CONN HOUSING PL 2 POS 6MM CRIMP ST CABLE MOUNT DARK GRAY CARTON

Find alt
PTL 1X2 PLUG HSG GLW WIRE KEY A DGR-5-2232265-2

5-2232265-2

Active
TE Connectivity AMP Connectors

CONN HOUSING PL 2 POS 6MM CRIMP ST CABLE MOUNT DARK GRAY CARTON

Find alt

Description

General part information

5-2232265-2

2 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock

Technical Specifications

Parameters and characteristics for this part

Specification5-2232265-2
ColorGray
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Blade Socket
Fastening TypeLatch Lock
FeaturesGlow Wire Compliant
Insulation MaterialNylon 6, Polyamide (PA6)
Mounting TypeFree Hanging (In-Line)
Number of Positions2
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch0.236 in
