Y1503
ActiveTE Connectivity AMP Connectors
RF ANT 162MHZ YAGI N FEM BRKT MT
Y1503
ActiveTE Connectivity AMP Connectors
RF ANT 162MHZ YAGI N FEM BRKT MT
Description
General part information
Y1503

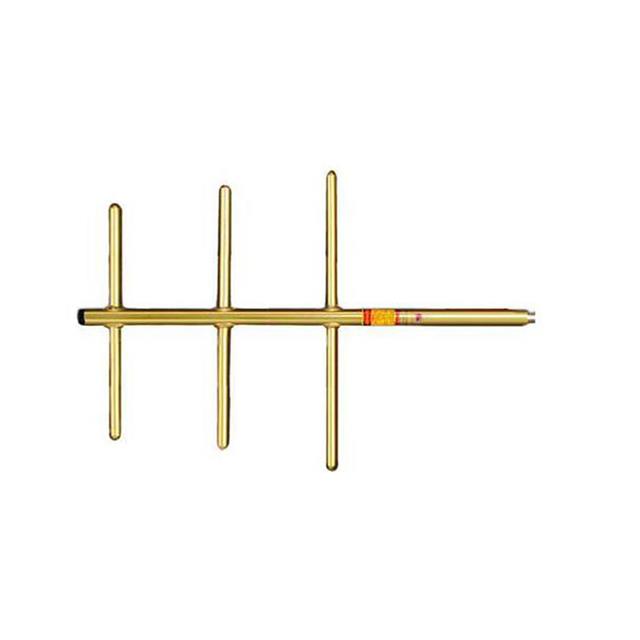

RF ANTENNA Yagi, 3-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | Y1503 |
|---|---|
| Antenna Element Count | 3 elements |
| Antenna Type | Yagi |
| Frequency (Center/Band) | 162 MHz |
| Frequency Group | VHF |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Range (Max) | 174 MHz |
| Frequency Range (Min) | 150 MHz |
| Gain | 7.1 dBd |
| Height (Max) | 39.25 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 300 W |
| Return Loss | -10 dB |
| Termination | N Type Female |
| VSWR | 2 |
