Description
General part information
PRT-13851

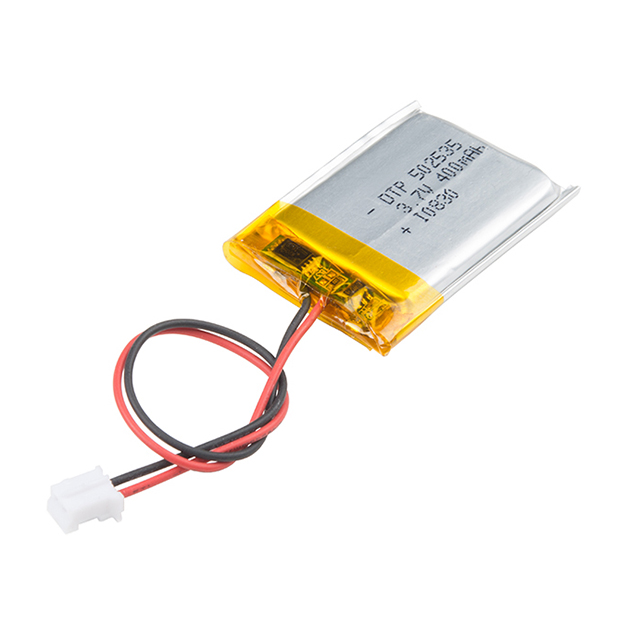

3.7 V Lithium-Ion Battery Rechargeable (Secondary) 400mAh
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-13851 |
|---|---|
| Battery Chemistry | Lithium-Ion |
| Capacity (Charge) | 400 mAh |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Height | 0.2 in |
| Size / Dimension Length | 1.04 in |
| Size / Dimension Width | 1.45 in |
| Standard Charge Current | 100 mA |
| Termination Style | JST PH Connector |
| Voltage - Rated | 3.7 V |
| Weight | 9 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
