N823S-05M-MG
ActiveEaton Tripp Lite
400G MULTIMODE 50/125 OM4 FIBER
N823S-05M-MG
ActiveEaton Tripp Lite
400G MULTIMODE 50/125 OM4 FIBER
Description
General part information
N823S-05M-MG

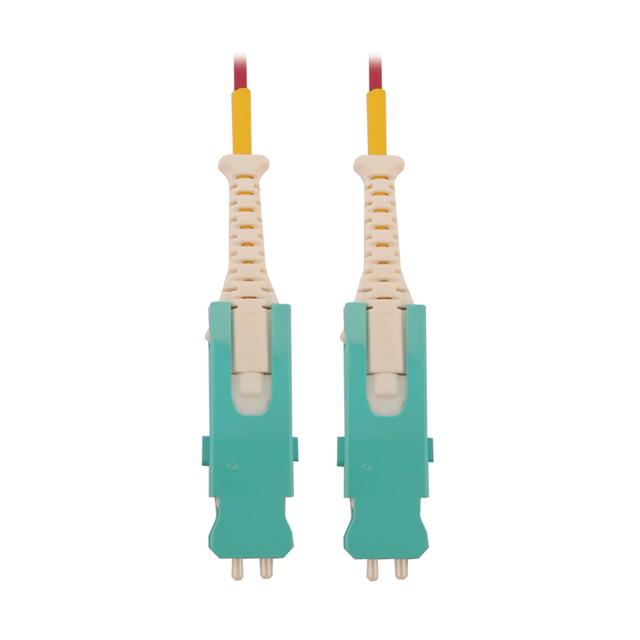

Cable Fiber Optic SN Duplex To SN Duplex 50/125 16.4' (5.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N823S-05M-MG |
|---|---|
| 1st Connector | SN Duplex |
| 2nd Connector | SN Duplex |
| Bend Radius | 10 mm |
| Cable Diameter | 0.06 " |
| Color - Cable | Magenta |
| Color - Connectors | Aqua, White |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 16.4 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | OM4, Multimode |
