KR1800SCEL3X1
UnknownPanasonic Energy
BATTERY PACK NICD 3.6V SC
KR1800SCEL3X1
UnknownPanasonic Energy
BATTERY PACK NICD 3.6V SC
Description
General part information
KR1800SCEL3X1

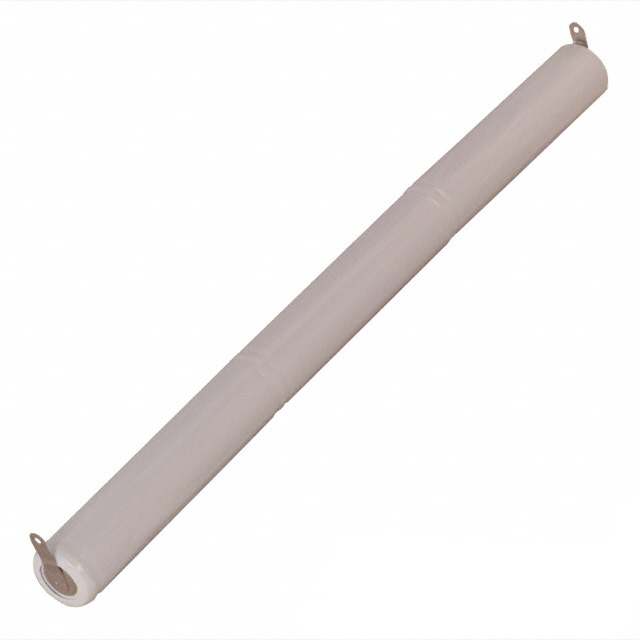

SC 3.6 V Nickel Cadmium Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | KR1800SCEL3X1 |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 1.8 Ah |
| Number of Cells | 3 |
| Rechargeability | Yes |
| Size / Dimension Height | 5 in |
| Size / Dimension Length | 0.87 in |
| Size / Dimension Width | 0.87 in |
| Structure | Front to Back |
| Structure Cells | 3 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 3.6 VDC |
| Weight | 146.96 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
