Description
General part information

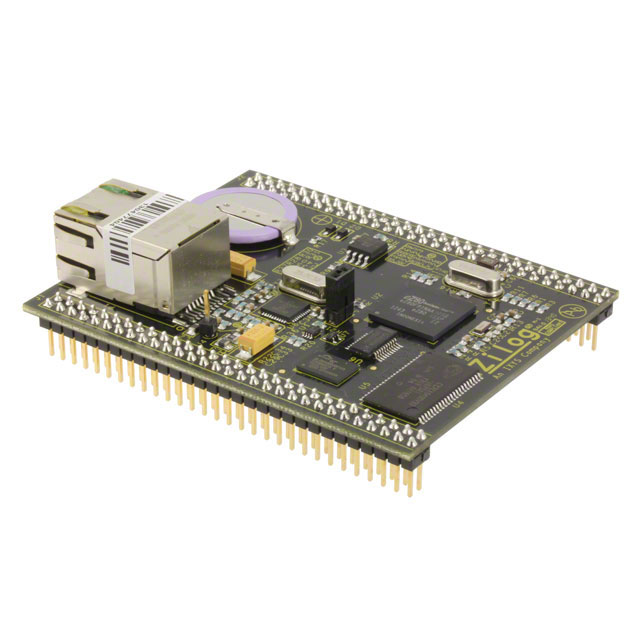

EZ80F917150MODG
eZ80® AcclaimPlus!™ Embedded Module eZ80F91 50MHz 8KB (Internal), 512KB (External) 256KB (Internal), 8MB (External)
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ80F917150MODG |
|---|---|
| Connector Pins per Row | 30 |
| Connector Rows | 2 |
| Connector Type | Header, Header 2x30 |
| Core Processor | eZ80F91 |
| Flash Size (External) | 8 MB |
| Flash Size (Internal) | 256 KB |
| Module/Board Type | Ethernet Core, MCU |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Size (External) | 512 KB |
| RAM Size (Internal) | 8 KB |
| RAM Size Type | External, Internal |
| Size / Dimension Length | 2.5 in |
| Size / Dimension Width | 3.1 in |
| Speed | 50 MHz |
