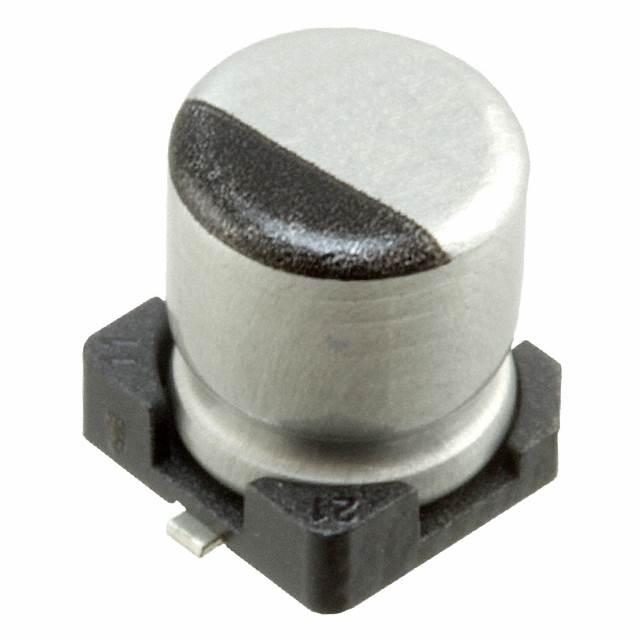

Specification	UCD0J560MCL1GS

Applications	Automotive
Capacitance	56 µF
Height - Seated (Max)	0.24 in
Impedance	700 mOhm
Lifetime	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	160 mA, 80 mA
Size / Dimension Diameter	0.197 in
Surface Mount Land Length	0.209 in
Surface Mount Land Width	0.209 in
Tolerance	20 %
Voltage - Rated	6.3 V

UCD Series

Part	Height - Seated (Max)	Surface Mount Land Width	Surface Mount Land Length	Mounting Type	Package / Case	Ripple Current	Capacitance	Operating Temperature (Min)	Operating Temperature (Max)	Lifetime	Applications	Polarization	Impedance	Size / Dimension Diameter	Ratings	Voltage - Rated	Tolerance
Nichicon UCD1H220MCL1GS	0.24 in	0.26 in	0.26 in	Surface Mount	Can - SMD Radial	85 mA 170 mA	22 µF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	860 mOhms	0.248 in	AEC-Q200	50 V	20 %
Nichicon UCD2A331MNS1MS	0.689 in	0.752 in	0.752 in	Surface Mount	Can - SMD Radial	458.5 mA 917 mA	330 µF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	150 mOhms	0.709 in	AEC-Q200	100 VAC/DC	20 %
Nichicon UCD1K330MNS1GS	0.433 in	0.327 in	0.327 in	Surface Mount	Can - SMD Radial	65 mA 130 mA	33 µF	-55 °C	105 °C	2000 Hrs	Automotive	Polar	1.3 Ohms	0.315 in	AEC-Q200	80 Vp-p	20 %
Nichicon UCD1J681MNS1MS	0.689 in	0.752 in	0.752 in	Surface Mount	Can - SMD Radial	1.69 A 845 mA	680 µF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	80 mOhms	0.709 in	AEC-Q200	63 V	20 %
Nichicon UCD1J151MNJ1MS	0.571 in	0.535 "	0.535 "	Surface Mount	Can - SMD Radial	400 mA 800 mA	150 µF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	0.16 Ohms	0.492 in	AEC-Q200	63 V	20 %
Nichicon UCD1E222MNSBCKMS
Nichicon UCD1A330MCL6GS	0.24 in	0.169 in	0.169 in	Surface Mount	Can - SMD Radial	45 mA 90 mA	33 µF	-55 °C	105 °C	2000 Hrs	Automotive	Polar	1.35 Ohms	0.157 in	AEC-Q200	10 V	20 %
Nichicon UCD1V102MNQ1MS	0.689 in	0.673 in	0.673 in	Surface Mount	Can - SMD Radial	1.8 A 900 mA	1 mF	-55 °C	105 °C	5000 Hrs	Automotive	Polar		0.63 in	AEC-Q200	35 V	20 %
Nichicon UCD2A680MNJ1MS	0.571 in	0.535 "	0.535 "	Surface Mount	Can - SMD Radial	250 mA 500 mA	68 µF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	320 mOhm	0.492 in	AEC-Q200	100 VAC/DC	20 %
Nichicon UCD1E102MNS1MS	0.492 in	0.535 "	0.535 "	Surface Mount	Can - SMD Radial	1.1 A 550 mA	1 mF	-55 °C	105 °C	5000 Hrs	Automotive	Polar	80 mOhms	0.492 in	AEC-Q200	25 VAC	20 %
