3-1376393-4
ActiveTE Connectivity AMP Connectors

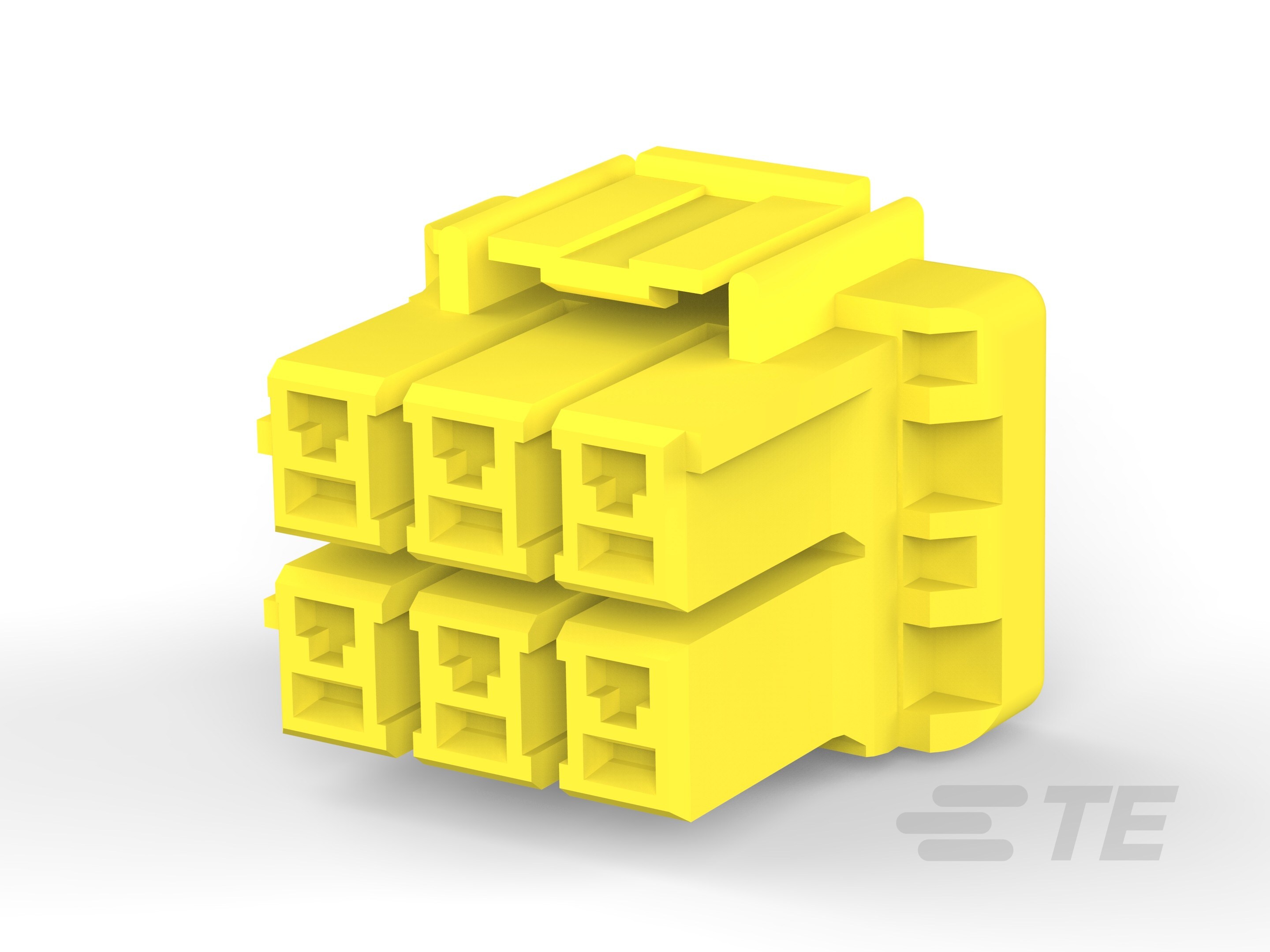

5MM POWER KEY 6P PLUG HSG YELL
3-1376393-4
ActiveTE Connectivity AMP Connectors
5MM POWER KEY 6P PLUG HSG YELL
Description
General part information
3-1376393-4
6 Position, Plug, Housing, Crimp, Wire-to-Board, UL 94V-0, 5 mm [.197 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power & Signal, Power Key 5.0
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1376393-4 |
|---|---|
| Color | Yellow |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Row Spacing | 0.244 in |
