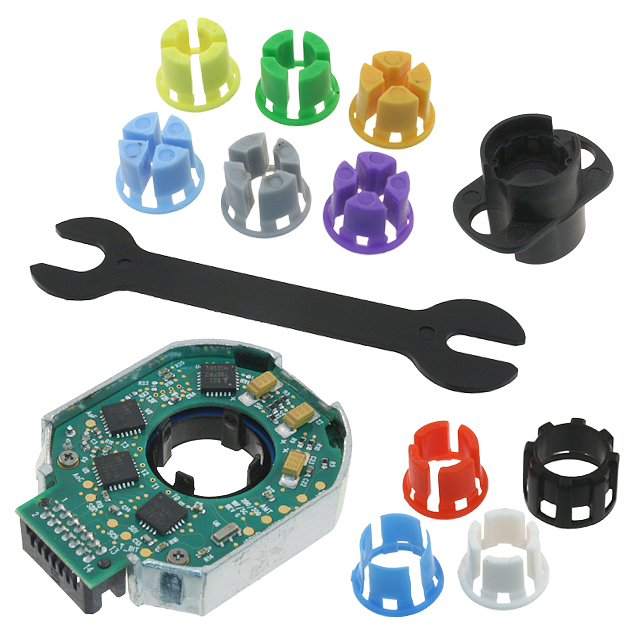

AMT303LD-V
ObsoleteSame Sky (Formerly CUI Devices)
ROTARY ENCODER INCREMENT 200PPR
AMT303LD-V
ObsoleteSame Sky (Formerly CUI Devices)
ROTARY ENCODER INCREMENT 200PPR
Description
General part information
AMT303LD-V
Rotary Encoder Incremental 200 Commutation, CW, 10 Pole, with Line Driver Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | AMT303LD-V |
|---|---|
| Actuator Stroke (Max) | 8 mm |
| Actuator Stroke (Min) | 2 mm |
| Actuator Type | Open Center |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Right Angle |
| Output Type | CCW, Commutation, with Line Driver, 4 Pole, 12 Pole, 6 Pole, 8 Pole, CW, 20 Pole, 2 Pole, 10 Pole |
| Pulses per Revolution | 96, 400, 1024, 512, 200, 250, 192, 500, 800, 1000 |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5 VDC |
