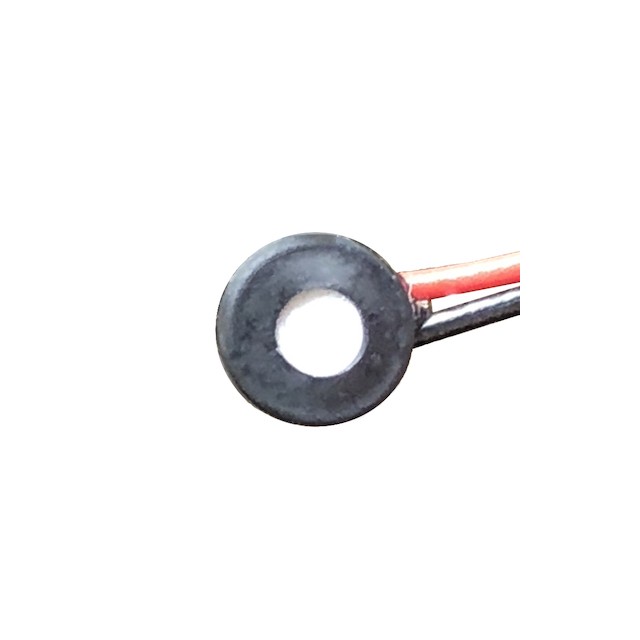

MW043002-1
ActiveDB Unlimited
OMNIDIRECTIONAL WATERPROOF ELECT
MW043002-1
ActiveDB Unlimited
OMNIDIRECTIONAL WATERPROOF ELECT
Description
General part information
MW043002-1
OMNIDIRECTIONAL WATERPROOF ELECT
Technical Specifications
Parameters and characteristics for this part
| Specification | MW043002-1 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 16 kHz |
| Frequency Range (Min) | 50 Hz |
| Height (Max) | 0.079 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| Ratings | Waterproof, IP67 - Dust Tight |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -30 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.181 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 1 V |
