Description
General part information

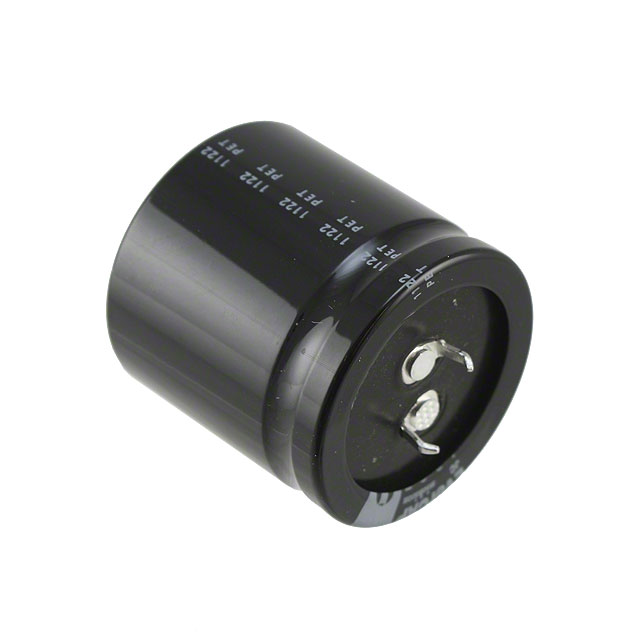

JJC0E566MELA
56 F (EDLC) Supercapacitor 2.5 V Radial, Can - Snap-In 70mOhm @ 1kHz 2000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | JJC0E566MELA |
|---|---|
| Capacitance | 56 F |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Height - Seated (Max) | 1.654 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 0.984 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 2.5 V |
