Description
General part information
COM-00683

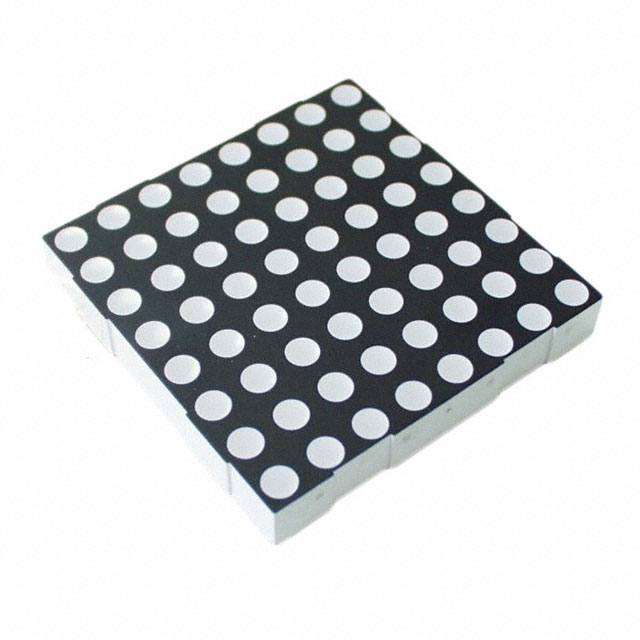

Dot Matrix Display Module 8 x 8 Common Cathode Row, Common Anode Column Red, Green, Blue (RGB) 2V Red, 3.3V Green, 3.3V Blue 2.37" L x 2.37" W x 0.36" H (60.20mm x 60.20mm x 9.10mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-00683 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | 8 |
| Internal Connection | Common Cathode Row, Common Anode Column |
| Millicandela Rating (Blue) | 200 mcd |
| Millicandela Rating (Green) | 300 mcd |
| Millicandela Rating (Red) | 150 mcd |
| Millicandela Rating Colors | Red, Blue, Green |
| Size / Dimension Height | 0.36 in |
| Size / Dimension Length | 2.37 in |
| Size / Dimension Width | 2.37 in |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.3 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3.3 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | Red, Green, Blue |
