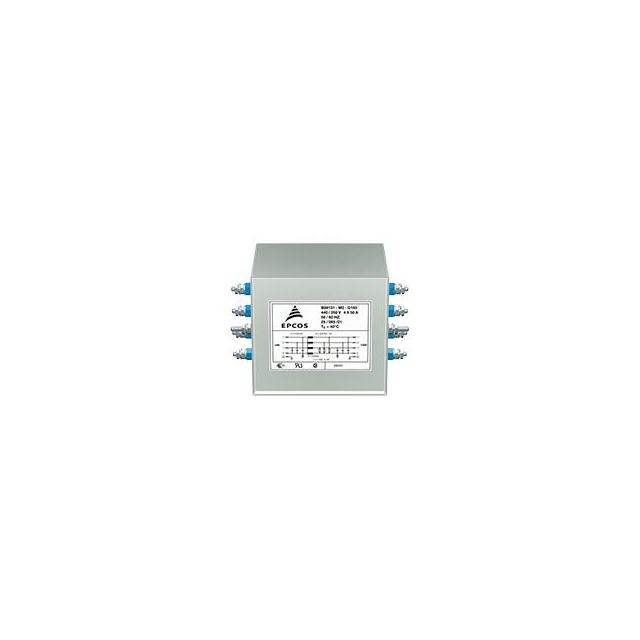

B84131M0001G125
ActiveEPCOS - TDK Electronics
LINE FILTER 440V/250VAC 25A CHAS
B84131M0001G125
ActiveEPCOS - TDK Electronics
LINE FILTER 440V/250VAC 25A CHAS
Description
General part information
B84131M0001G125
Three Phase (Wye) EMC/EMI Line Filter 25 A 440V, 250V 50 ~ 60Hz Single Stage Threaded Post (M6)
Technical Specifications
Parameters and characteristics for this part
| Specification | B84131M0001G125 |
|---|---|
| Applications | Medical |
| Approval Agency | cUL, CSA, UL, ENEC |
| Configuration | Single Stage |
| Current | 25 A |
| Filter Subtype | Wye |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (M6) |
| Voltage - Rated AC | 440V, 250V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 250 V |
| Voltage - Rated AC (Phase to Phase) | 440 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
