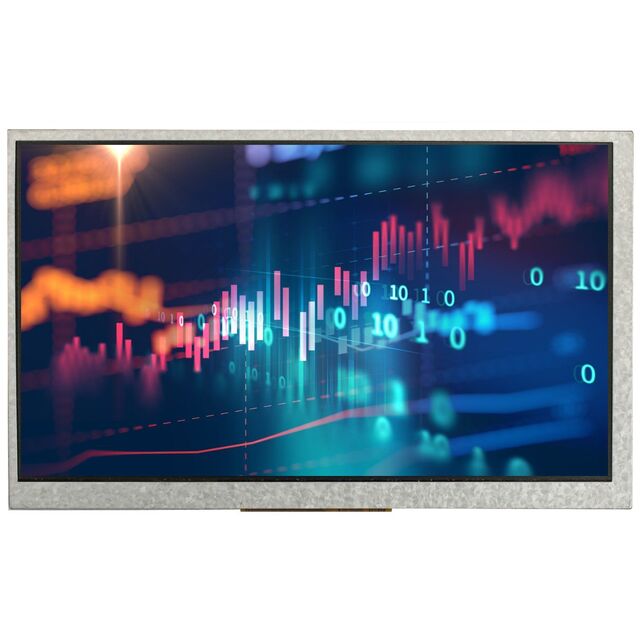

MDT7000
ActiveMidas Displays
7.0" 24-BIT RGB TFT, 800X480 RES
MDT7000
ActiveMidas Displays
7.0" 24-BIT RGB TFT, 800X480 RES
Description
General part information
MDT7000
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 24-Bit (RGB) 7" (177.80mm) 800 x 480
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT7000 |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | EK79713CA, EK73202AB2 |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface Data Width | 24 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 85.92 mm |
| Viewing Area Width | 154.08 mm |
