1-1546657-0
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 10CIRC 0.25"
1-1546657-0
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 10CIRC 0.25"
Description
General part information
1-1546657-0

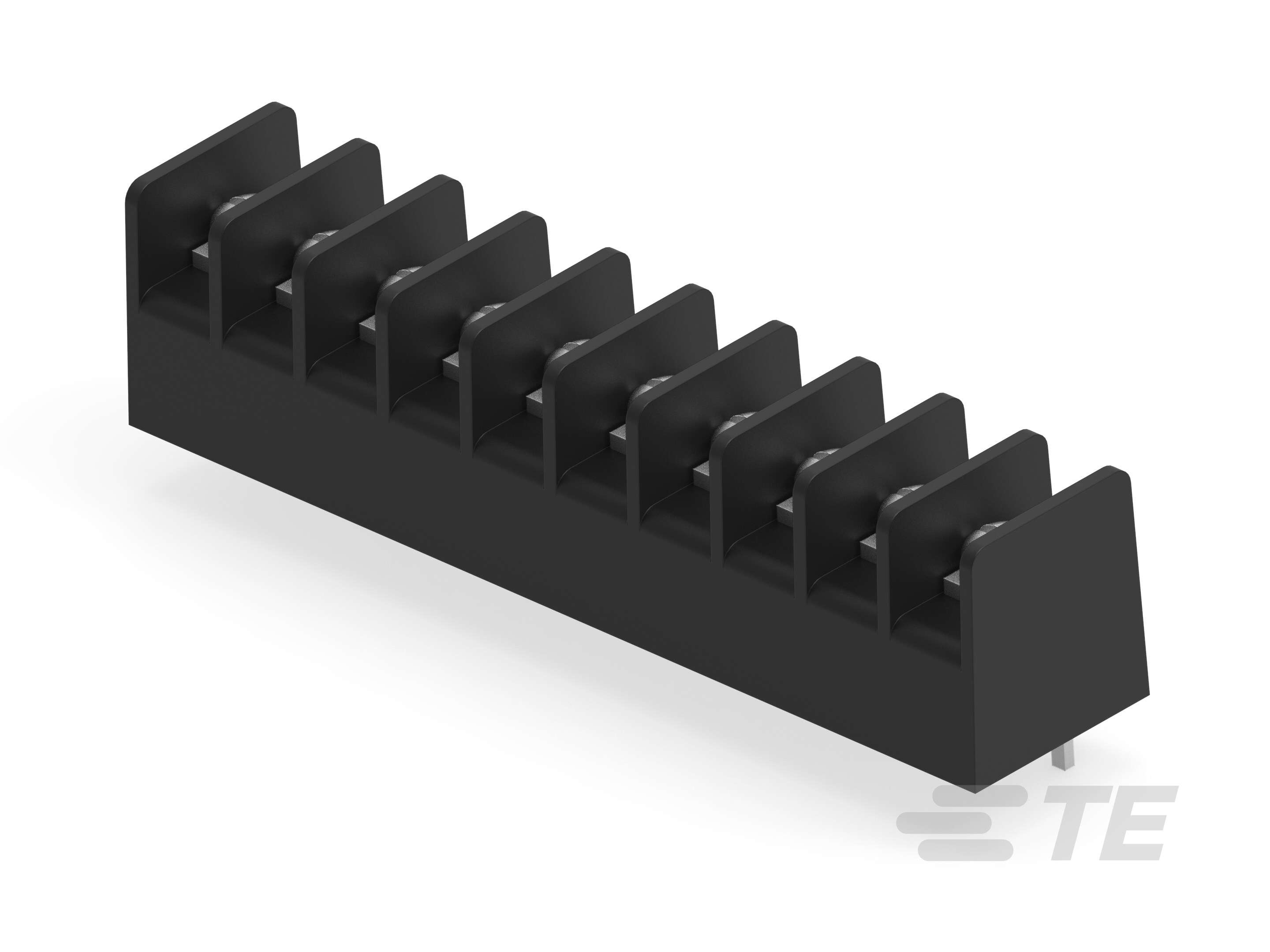

10 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 6.35 mm [.25 in] Centerline, 1 Row, 300 V, 30 – 16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1546657-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 10 A |
| Number of Circuits | 10 |
| Number of Rows | 1 |
| Number of Wire Entries | 10 |
| Pitch | 0.25 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
