SFR2500003169FR500
ActiveVishay Dale
THROUGH HOLE RESISTOR, 31.6 OHM, SFR25 SERIES, 400 MW, ± 1%, AXIAL LEADED, 250 V
SFR2500003169FR500
ActiveVishay Dale
THROUGH HOLE RESISTOR, 31.6 OHM, SFR25 SERIES, 400 MW, ± 1%, AXIAL LEADED, 250 V
Description
General part information
SFR2500003169FR500

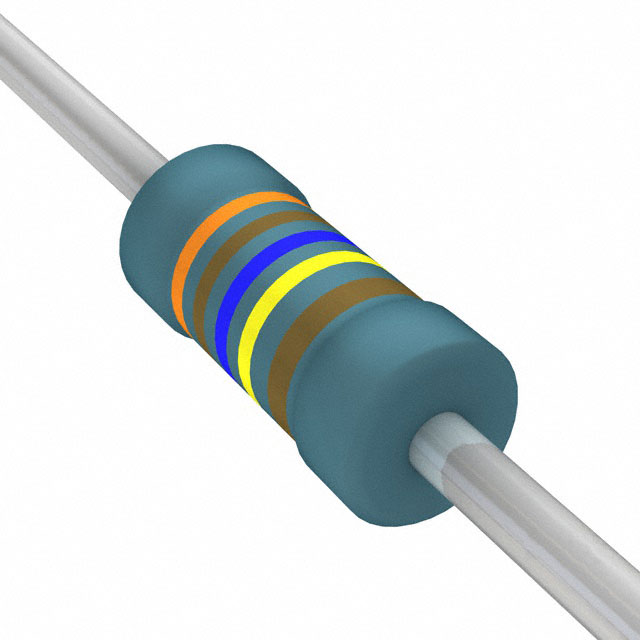

31.6 Ohms ±1% 0.4W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SFR2500003169FR500 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 31.6 Ohm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
